SunwayFoto TH-40S 40mm Low-Profile Ball Head with Arca Swiss Clamp and Quick Release Plate

SKU: SUTH40S MFR: TH-40S
Earn VIP Reward Points

Key Features

  • Achieve smooth, precise camera movements with this SunwayFoto 40mm ball head.
  • Enjoy rock-solid stability for sharp images; supports up to 44 lbs (20kg) load capacity.
  • Arca Swiss compatible clamp makes attaching your camera quick and super secure.
  • Low-profile design (2.9" height) ensures a compact setup for easy portability.
  • Durable aluminum build guarantees long-lasting performance for all your photography.
  • Easily adapt to different tripods with the included 3/8" to 1/4" bushing adapter.
See More Product Details
Special Order?Estimated to Ship: 10/20/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SunwayFoto TH-40S Specifications

  • Material

    Aluminum

  • Ball Diameter

    1.5" (40mm)

  • Base Diameter

    2" (53mm)

  • Base Thread Socket

    UNC 3/8"-16

  • Load Capacity

    44 lbs (20kg)

  • Base Socket Depth

    0.4" (11mm)

  • Clamp Type

    Screw-knob Clamp

  • Height

    2.9" (73mm)

  • Weight

    14.3 oz (407g)

  • UPC Code

    6972764976645

About SunwayFoto TH-40S

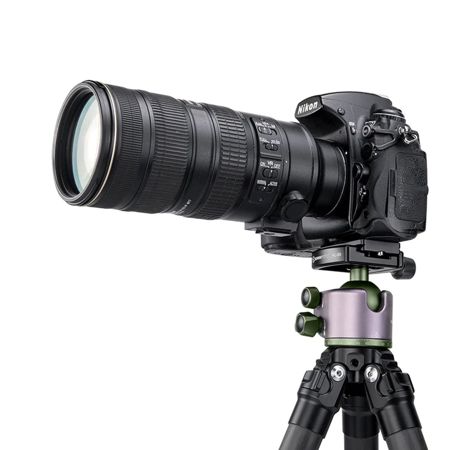

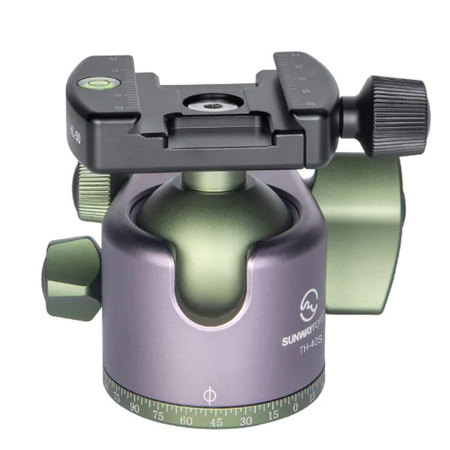

For photographers seeking a blend of stability and versatility, the TH-40S 40mm Low-Profile Ball Head with Arca Swiss Clamp and Quick Release Plate stands out as an essential accessory. Crafted for durability and precision, this high-quality ball head features a low center of gravity design, which not only enhances the stability of your camera setup but also ensures smoother shooting experiences.

The sturdy construction of the TH-40S is evident in its ability to support a maximum load capacity of an impressive 44 pounds, making it suitable for a wide range of cameras and lenses. Its compatibility with both 3/8"-16 and 1/4"-20 tripod mount threads, thanks to the included adapter, broadens its versatility, allowing it to be mounted on various tripods, from professional-grade to more compact options.

Operation is streamlined with three intuitively designed knobs. The Main Knob is oversized for an easy grip, ensuring higher locking strength and quick adjustments. The Friction Knob allows photographers to customize the appropriate friction level for their specific equipment, facilitating fine-tuning and precision control during shoots. The third knob manages the panning movement, providing smooth and controlled panoramic shots.

The inclusion of a universal Quick Release (QR) Plate is a testament to the TH-40S's user-friendly design. This feature enables swift attachment and detachment of cameras, saving valuable time on set or in the field. The Arca Swiss Clamp ensures compatibility with a wide range of quick release plates, further enhancing the ball head's adaptability.

Compact yet robust, the TH-40S 40mm Low-Profile Ball Head is an ideal choice for photographers who demand both portability and performance. Whether in the studio or on location, this ball head provides the sturdy foundation and flexibility needed to capture stunning images with confidence.

SunwayFoto TH-40S Features

  • It is adopted by Army green hard oxidation, suitable for out-door jungle, easy to hide and confuse targets
  • Lower gravity center compared with traditional ballheads, which lowers the whole gravity of your shooting equipment hence ensures better stability
  • 360 Degrees panning clamp, compatible with Arca Swiss QR plates
  • Adjust and set appropriate friction according to equipment weight to ensure safety and quicker photo composition
  • Ballhead diameter 55mm, load capacity 35kg, can be fixed on most of DSLR cameras and telephoto lens
  • Single Notch Design
  • Easy Switching
  • 40mm Diameter Ball Provides Higher Load Capacity

Warranty Information

This product has a limited warranty of 72 months.

Key Features

  • Achieve smooth, precise camera movements with this SunwayFoto 40mm ball head.
  • Enjoy rock-solid stability for sharp images; supports up to 44 lbs (20kg) load capacity.
  • Arca Swiss compatible clamp makes attaching your camera quick and super secure.
  • Low-profile design (2.9" height) ensures a compact setup for easy portability.
  • Durable aluminum build guarantees long-lasting performance for all your photography.
  • Easily adapt to different tripods with the included 3/8" to 1/4" bushing adapter.

What's in the box:

  • SunwayFoto TH-40S 40mm Low-Profile Ball Head
  • Arca Swiss Clamp (HL-50)
  • Quick Release Plate (DP-60G)
  • 3/8" to 1/4" Bushing Adapter
  • 2x Safety Stop Screws
  • 2x Rubber Pads
  • 4mm Wrench
  • 2.5mm Wrench
  • SunwayFoto 6 Year Limited Warranty
