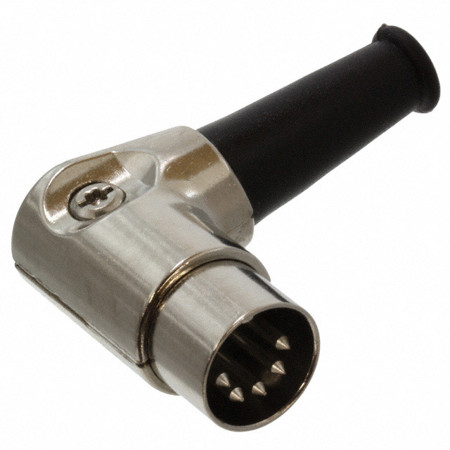

Switchcraft 5Pin DIN Right Angle Male Cable Mount Connector, Black Strain Relief
See all Switchcraft items

Switchcraft DIN Right Angle Male Cable Mount Connector, 5 Pins at 180deg., Black Strain Relief

SKU: SW05DL5MX
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-01-22T19:38:48

Rated 5 out of 5

Adjustable Orientation

This great for guitar pedals because you can orient this any way you want. If your pedalboard space is tight, having an angled connector saves a lot of precious real estate!

Hiram A.

2018-07-11T10:31:26

Rated 5 out of 5

Exactly What I Wanted/Ordered!

While a little disappointed that only one of these was available, I was pleased to receive at least that one! I look forward to the backorder of more units being filled when possible. I was told by a customer service representative that there would be no additional shipping charges incurred and this is good!

Gene S.

Switchcraft Connector Specifications

  • Connector Type

    Plug, Male Pins

  • Number of Positions

    5

  • Shell Size - Insert

    DIN (180 Degree)

  • Mounting Type

    Free Hanging (In-Line), Right Angle

  • Shell Material, Finish

    Zinc Die Cast, Nickel Plated Zinc Die Cast, Nickel Plated

  • Voltage - Rated

    34VDC

  • Current Rating

    3A

  • UPC Code

    818213491221

About Switchcraft Connector

Male and female cord plug with shielded barrel or insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel's special metal tab locks the shell in place. Standard color of plastic shell is gray. All-purpose cable clamp. Plug, Male Pins.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 5Pin DIN Right Angle Male Cable Mount Connector
  • Switchcraft Lifetime Limited Warranty
