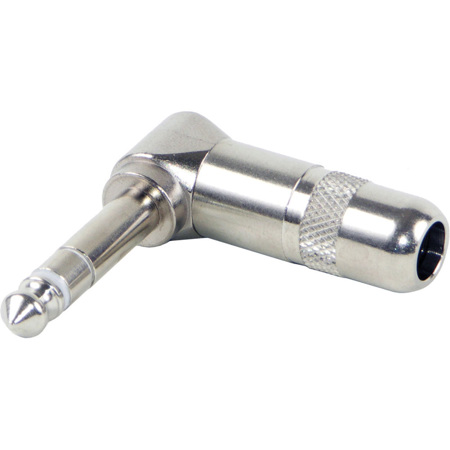

Switchcraft 1/4" Stereo Right Angle 3 Conductor Cable Mount Plug
See all Switchcraft items

Switchcraft 1/4" Stereo Right Angle 3 Conductor Cable Mount Plug, Nickel Plated, Metal Handle

SKU: SW236
(3)

This item is no longer available.

Recommended Alternatives

Switchcraft : Picture 1 regular
Switchcraft 1/4" Stereo 3 Conductor 90 Deg. Cable Mount Plug, Nickel
$15.48$6.09
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-12-05T14:28:00

Rated 4 out of 5

Tight Spaces

I found these to be well built, as you would expect, and pretty much well thought out, because the little lugs are spaced out creatively. I put these on some Belden cable with not many problems. For my main project I had some strange cable to work with, and these were not easy enough to make a good match with that cable. I gave up after a few tries. I would say if you have cooperative cable, exactly the right tools, and lots of patience, these are some good plugs.

Alan K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Switchcraft 1/4" Stereo Right Angle 3 Conductor Cable Mount Plug Specifications

  • Tip, Rod and Handle

    Nickel-plated copper alloy

  • Housing/Sleeve

    Nickel-plated

  • Tip Terminal

    Tin-plated copper alloy

  • Sleeve (Clamp) Terminal

    Tin-plated steel

  • Insulation

    Thermoplastic

  • Dielectric Withstanding Voltage

    500VAC

  • Insulation Resistance

    50000MOhms minimum (initial)

  • Operating Temperature

    20 to 65 deg. C / 68 to 149 deg. F

About Switchcraft 1/4" Stereo Right Angle 3 Conductor Cable Mount Plug

Switchcraft's 3 conductor right-angle audio phone plugs are designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring and only three pieces to assemble - handle, insulator and finger/housing assembly and rugged reliability for stable, long-term, trouble-free operation.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 1/4 " Stereo Right Angle 3 Conductor Cable Mount Plug
  • Switchcraft Lifetime Limited Warranty
