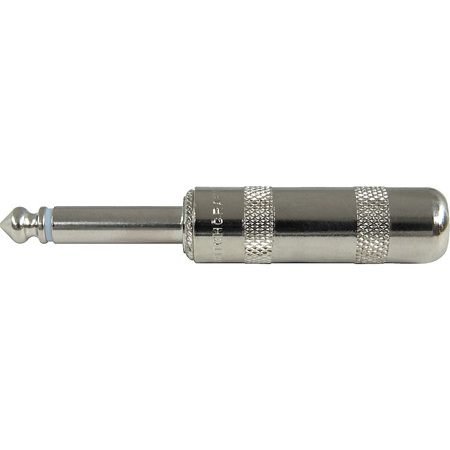

Switchcraft 1/4" Mono 2 Conductor Cable Mount Plug, Nickel Metal Handle
See all Switchcraft items

Switchcraft 1/4" Mono 2 Conductor Cable Mount Plug, Nickel Metal Handle with Solder Lugs & Cable Clamp

SKU: SW280
(3)

This item is no longer available.

Recommended Alternatives

Switchcraft : Picture 1 regular
Switchcraft 1/4" Mono 2 Conductor Cable Mount Plug, Nickel Metal Handle, Package
$10.97
Switchcraft : Picture 1 regular
Switchcraft 1/4" Longframe Cable Mount Brass Plug, Screw Terminals, Black
$39.06
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-30T12:08:16

Rated 5 out of 5

Most dependable

This is the plug that I've long come to rely on to not just last but actually fit. I have several cables that came with plugs that must be non-standard as they don't agree with my instruments. I've never had that issue with a Switchcraft. I know there are 2 camps--Switchcraft vs Neutrik. While I like them both, I find these to be easier to work with. Some may differ. The Neutrik certainly looks cooler but I'm more comfortable installing these.

STEVEN G.

Switchcraft 1/4" Mono 2 Conductor Cable Mount Plug, Nickel Metal Handle Specifications

  • Conductors

    2

  • Terminals

    Solder

  • Jack

    Mating: 11

  • Contact Resistance

    <0.020Ohms (depends on mating jack)

  • Dielectric Withstanding Voltage Test

    500 VAC (minimum)

  • Insulation Resistance

    At 500 VDC: 2000 MO (minimum)
    after MIL-STD-202 Salt Spray: 1000 MO (minimum)

  • Working Voltage

    250 VAC, 140 VDC

  • Force

    Insertion/Withdrawal: Depends on mating jack

  • Standard

    Soldering: ANSI/J-Std-001

  • Temperature Range

    -40 to 185 deg. F / -40 to 85 deg.

  • Compliance

    UL

  • Materials

    Tip: Nickel-plated copper alloy
    Sleeve: Nickel-plated copper alloy
    Handle: Nickel-plated copper alloy
    Tip Terminal: Copper alloy, electro tin-plated
    Cable Clamp: Copper alloy, electro-tin plated

  • Handle

    Shielded nickel

About Switchcraft 1/4" Mono 2 Conductor Cable Mount Plug, Nickel Metal Handle

FEATURED REVIEWS

Most dependable

By STEVEN G.

This is the plug that I've long come to rely on to not just last but actually fit. I have several cables that came with plugs that must be non-standard as they don't agree with my instruments. I've never had that issue with a Switchcraft. I know there are 2 camps--Switchcraft vs Neutrik. While I like them both, I find these to be easier to work with. Some may differ. The Neutrik certainly looks cooler but I'm more comfortable installing these.

Heavy-duty machined copper alloy handle, tip and body for unsurpassed ruggedness. Bright nickel plating on exterior surfaces will not chip or corrode. Solder terminals are tin electroplated for ease of soldering. One-piece tip rod staked into tip terminal to ensure electrical continuity. Heavy-duty cable clamp provides secure strain relief.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 1/4 " Mono 2 Conductor Cable Mount Plug
  • Switchcraft Lifetime Limited Warranty
