Switchcraft AudioFix Inline 3-Pin XLR Male to Female Connector, Nickel
See all Switchcraft items

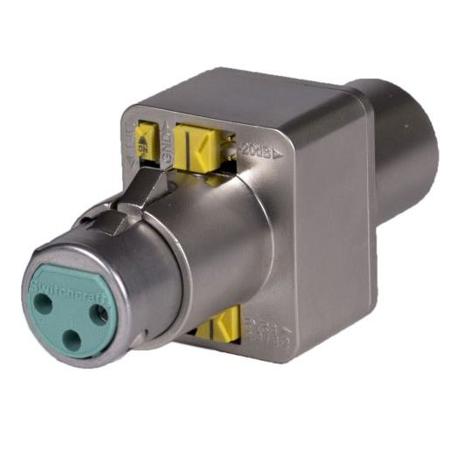

Switchcraft AudioFix Inline 3-Pin XLR Male to Female Audio-Controlled Connector, Nickel

SKU: SW303
Be the first to review this item

This item is no longer available.

Recommended Alternatives

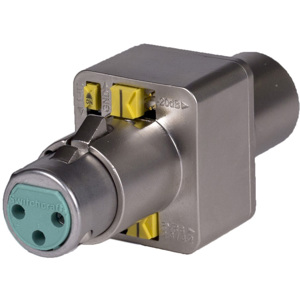

Switchcraft AudioFix Inline Connector: Picture 1 regular
Switchcraft AudioFix Inline 3-Pin XLR Male to Female Connector, Black
$68.15
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Switchcraft AudioFix Inline Connector Specifications

  • Switches rating

    100 V, 1A (Switching)

  • Changeover Switches type

    Non-Shorting BBM

  • Pad ON input impedance on Female side

    1657 Ohm with 1K Ohm load

  • Pad ON output impedance on Male side

    167 Ohm with 150 Ohm source

  • Housing

    Nickel plated Zinc Alloy

  • Dimensions

    2.87 X 1.03 X 1.227" (72.9 x 26.16 x 31mm)

  • UPC Code

    853592007250

About Switchcraft AudioFix Inline Connector

AudioFix Inline Audio Control Connector
The AudioFix is an inline audio control connector that provides three easily accessible, switchable functions. The all metal design utilizes the durability of Switchcraft male and female XLR connectors along with -20B attenuation circuit, ground lift function and 180 degree phase inverse.

The Switchcraft 303 Inline controlled connector provides three easily accessible, switchable control functions. The 303's all metal design that utilizes the durability of Switchcraft male and female XLR connectors, plus easy access, high performance control switches. Fully passive, with latching mechanism on both ends.

Switchcraft AudioFix Inline Connector Features

  • Sound Reinforcement
  • Music Studios
  • Various Broadcast Applications
  • Recording
  • Male 3-Pin to Female 3-Pin XLR with latch
  • Attenuation -20dB, switchable
  • RoHS compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sound Reinforcement
  • Music Studios
  • Various Broadcast Applications
  • Recording
  • Male 3-Pin to Female 3-Pin XLR with latch
  • Attenuation -20dB, switchable

What's in the box:

  • AudioFix Inline 3-Pin XLR Male to Female Audio-Controlled Connector (Nickel)
  • Switchcraft Lifetime Limited Warranty
