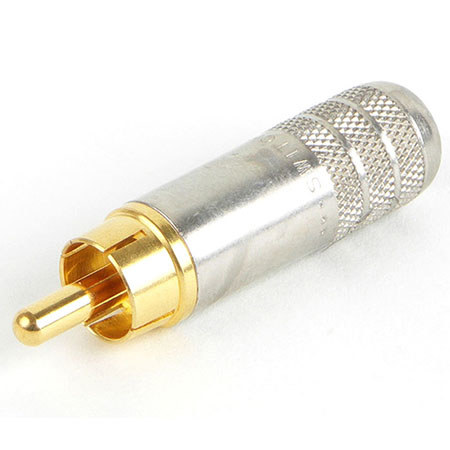

Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug, Gold Pin / Nickel Body

SKU: SW3502AAU MFR: 3502AAU
$4.50
$8.34
Save: $3.84 (46%)
Earn VIP Reward Points

Key Features

  • Achieve optimal audio fidelity with this Switchcraft shielded RCA connector.
  • Enjoy durable, long-lasting connections thanks to the gold-plated pin.
  • Minimize signal interference with our 2-conductor shielded cable mount.
  • Perfect for custom cable builds, supporting up to 0.203" cable diameter.
  • Ensure reliable audio connections with a robust, nickel-plated body.
  • Get superior sound quality; this RCA plug withstands up to 500V AC.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the advantage of the gold-plated connector pin on the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug?

The gold-plated connector pin on the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug offers superior conductivity and corrosion resistance. This ensures that your audio signals are transmitted with clarity and precision, reducing the risk of signal loss or interference.

Can this RCA straight plug be used with different cable sizes?

Yes, the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug is designed to accommodate a wide range of cable sizes, thanks to its larger cable clamp and handle. This makes it a versatile option for a variety of audio applications.

What kind of audio applications is this RCA straight plug suitable for?

The Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug is suitable for a variety of audio applications. It can be used to connect a high-fidelity home stereo system, set up a professional recording studio, or enhance the sound quality of your home theater setup.

What makes the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug easy to assemble?

The Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug features a solid-pin configuration and large solder terminals. These design elements make wire termination faster and easier, contributing to the plug's overall ease of assembly.

Shopper : Why Did You Choose This?BIN C : work with Belden 1694A. Some DIY articles/videos suggested.RANDY D : works well with older ('70's era) hi-fi equipment

Reviews about this item

Review Summary

Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Gold Pin / Nickel Body Specifications

  • Life

    D.O.M.J: Dependent On Mating Jack

  • Contact Resistance (typical D.O.M.J.)

    < 0.020Ohms.

  • Dielectric Withstand Voltage

    Minimum: 500V AC

  • Insulation Resistance at 500V DC

    Minimum: 2000MOhms

  • Insulation Resistance

    Minimum: 1000MOhms (after MIL-STD-202 Salt Spray)

  • Working Voltage

    250V AC, 140V DC

  • Current Carry at Working Voltage

    6.0Amps (typical D.O.M.J.)

  • Insert/Withdrawal Force

    Dependent On Mating Jack

  • Temperature Range

    -40 to + 85 deg. C / -40 to +185 deg. F

  • Pin

    Gold-plated copper alloy

  • Sleeve

    Gold-plated copper alloy

  • Handle

    Nickel-plated copper alloy

  • Cable Clamp

    C.R.S., electrotin-plated

  • Insulator

    Rigid plastic

  • Cable Size

    0.203" / 5.16mm dia.

About Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Gold Pin / Nickel Body

When it comes to establishing a pristine audio connection, the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug stands out with its professional-grade construction and reliable performance. This sturdy plug is engineered for those who demand high-quality sound without compromise.

Featuring a robust, easy-to-assemble design, this RCA straight plug is equipped with a solid-pin configuration that ensures a secure and stable connection. The large solder terminals are not only designed for quick and efficient wire termination but also provide a strong, durable bond for long-term use.

The gold-plated connector pin is a testament to the plug's superior conductivity and resistance to corrosion, ensuring that your audio signals are transmitted with clarity and precision. The nickel-finished handle adds a touch of elegance while offering the durability needed for frequent handling.

This versatile plug is designed to accommodate a wide range of cable sizes, thanks to its larger cable clamp and handle. This adaptability makes it an ideal choice for a variety of audio applications, whether you're connecting a high-fidelity home stereo system, setting up a professional recording studio, or ensuring the best sound quality for your home theater setup.

In summary, the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug is a reliable, high-quality choice for audio enthusiasts and professionals alike. Its durable construction, gold-plated connector, and ease of assembly make it a superior option for anyone looking to enhance their audio system with a connection that preserves signal integrity and reduces the risk of interference.

Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Gold Pin / Nickel Body Features

  • Professional-grade Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug for superior audio connectivity
  • Gold-plated connector pin for optimal signal transmission and corrosion resistance
  • Easy-to-assemble design with large solder terminals for quick, efficient wire termination
  • Durable nickel-finished handle designed for frequent handling
  • Versatile plug compatible with a wide range of cable sizes for diverse audio applications
  • Ideal for high-fidelity home stereo systems, professional recording studios, & home theater setups

Key Features

  • Achieve optimal audio fidelity with this Switchcraft shielded RCA connector.
  • Enjoy durable, long-lasting connections thanks to the gold-plated pin.
  • Minimize signal interference with our 2-conductor shielded cable mount.
  • Perfect for custom cable builds, supporting up to 0.203" cable diameter.
  • Ensure reliable audio connections with a robust, nickel-plated body.
  • Get superior sound quality; this RCA plug withstands up to 500V AC.

What's in the box:

  • Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug
  • Switchcraft Lifetime Limited Warranty
