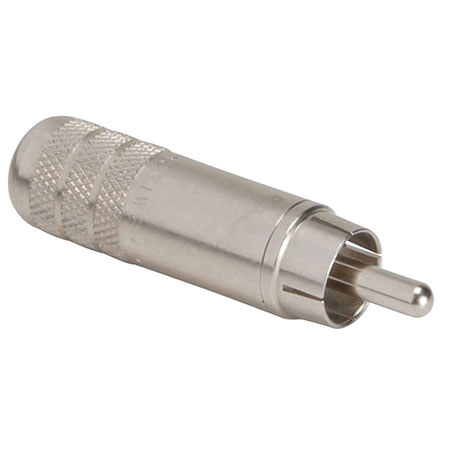

Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug, Nickel Pin / Body

SKU: SW3502APKG MFR: 3502APKG
$6.23
Earn VIP Reward Points

Key Features

  • Get superior audio signal quality with this Switchcraft RCA straight plug.
  • Enjoy long-lasting durability with the nickel-plated copper alloy construction.
  • Achieve reliable connections for your audio cables with this shielded connector.
  • This RCA connector's compact design fits cables up to 0.203" (5.16mm) in diameter.
  • Use this male RCA plug for custom cable builds, repairs, & unique audio setups.
  • Ensure compatibility with a wide range of devices using this standard RCA plug.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main use of the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug?

The primary use of this plug is to connect audio devices with RCA jacks, such as stereos, TVs, and home theater systems, providing a secure and reliable connection for high-quality audio transmission.

What makes the termination process easier with this RCA plug?

The solid-pin design and large solder terminals of this RCA plug simplify the termination process, making soldering more efficient and secure.

Does the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug accommodate different cable sizes?

Yes, the plug is designed with a larger cable clamp and handle that can accommodate a variety of cable sizes, making it versatile for different audio equipment needs.

What is the advantage of the straight boot angle design?

The straight boot angle design allows for easy plug-in and use, eliminating the hassle of navigating angled boots and making the setup process more straightforward.

What material is used in the construction of the RCA plug?

The RCA plug features a durable nickel pin and body, ensuring longevity and consistent performance for your audio setup.

Reviews about this item

Review Summary

Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Nickel Pin/Body Specifications

  • Life

    D.O.M.J: Dependent On Mating Jack

  • Contact Resistance (typical D.O.M.J.)

    < 0.020Ohms.

  • Dielectric Withstand Voltage

    Minimum: 500V AC

  • Insulation Resistance at 500V DC

    Minimum: 2000MOhms

  • Insulation Resistance

    Minimum: 1000MOhms (after MIL-STD-202 Salt Spray)

  • Working Voltage

    250V AC, 140V DC

  • Current Carry at Working Voltage

    6.0Amps (typical D.O.M.J.)

  • Insert/Withdrawal Force

    Dependent On Mating Jack

  • Temperature Range

    -40 to + 85 deg. C / -40 to +185 deg. F

  • Pin

    Nickel-plated copper alloy

  • Sleeve

    Nickel-plated copper alloy

  • Handle

    Nickel-plated copper alloy

  • Cable Clamp

    C.R.S., electrotin-plated

  • Insulator

    Rigid plastic

  • Cable Size

    0.203" / 5.16mm dia.

About Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Nickel Pin/Body

From the trusted name of Switchcraft comes the robust 2 Conductor Shielded Cable Mount RCA Straight Plug, meticulously engineered for those who demand high-quality and reliable audio connections. This durable plug boasts a nickel pin and body, ensuring not only longevity but also consistent performance for your audio setup.

The plug's solid-pin design is complemented by large solder terminals, which simplify the termination process, allowing for a more efficient and secure soldering experience. The craftsmanship of this RCA plug is evident in its straightforward assembly process, featuring a handle and plug assembly that is both user-friendly and conducive to a quick setup.

Designed with versatility in mind, the sturdy larger cable clamp and handle are crafted to accommodate a variety of cable sizes, making this plug a versatile choice for different audio equipment needs. The sleek nickel-plated plug body with a nickel finish handle not only adds to the aesthetic appeal but also contributes to the plug's overall durability.

Ideal for connecting a range of audio devices with RCA jacks, such as stereos, TVs, and home theater systems, this 2 Conductor Shielded Cable Mount RCA Straight Plug is a testament to Switchcraft's commitment to producing top-tier audio and video cables. Its straight boot angle is specifically designed for ease of use, allowing for a straightforward plug-in experience without the hassle of navigating angled boots.

Choose the Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug for a reliable and high-quality audio connection that saves time and space in any application, ensuring your audio transmissions are crystal clear and uninterrupted.

Switchcraft 2 Conductor Cable Mount RCA Straight Plug, Nickel Pin/Body Features

  • High-quality 2 Conductor Shielded Cable Mount RCA Straight Plug from trusted brand Switchcraft
  • Durable nickel pin and body for consistent audio performance and longevity
  • Solid-pin design and large solder terminals for easy and secure termination
  • Versatile larger cable clamp and handle, compatible with a range of cable sizes
  • Straight boot angle for easy plug-in and use with various audio devices
  • Ideal for connecting audio devices like stereos, TVs, and home theater systems for clear and uninterrupted audio transmission

Key Features

  • Get superior audio signal quality with this Switchcraft RCA straight plug.
  • Enjoy long-lasting durability with the nickel-plated copper alloy construction.
  • Achieve reliable connections for your audio cables with this shielded connector.
  • This RCA connector's compact design fits cables up to 0.203" (5.16mm) in diameter.
  • Use this male RCA plug for custom cable builds, repairs, & unique audio setups.
  • Ensure compatibility with a wide range of devices using this standard RCA plug.

What's in the box:

  • Switchcraft 2 Conductor Shielded Cable Mount RCA Straight Plug (Package)
  • Switchcraft Lifetime Limited Warranty
