Switchcraft Right Angle Cable Mount RCA Plug, Nickel Pin / Nickel Body
See all Switchcraft items

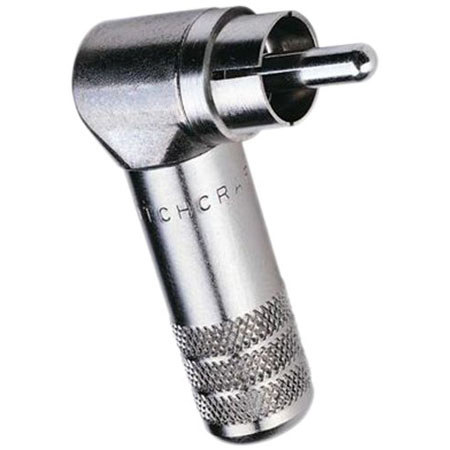

Switchcraft Right Angle Cable Mount RCA Plug, Nickel Pin / Nickel Body

SKU: SW3502RA
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Switchcraft : Picture 1 regular

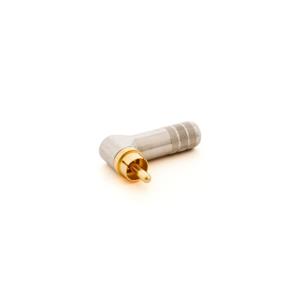

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Nickel Body
$20.79
Switchcraft : Picture 1 regular

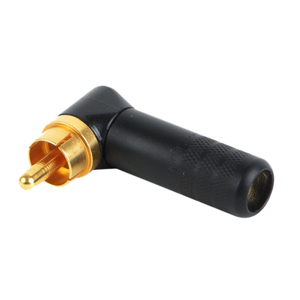

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body
$25.21
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Switchcraft Right Angle Cable Mount RCA Plug, Nickel Pin / Nickel Body Specifications

  • Life

    D.O.M.J: Dependent On Mating Jack

  • Contact Resistance (typical D.O.M.J.)

    < 0.020Ohms.

  • Dielectric Withstand Voltage

    Minimum: 500V AC

  • Insulation Resistance at 500V DC

    Minimum: 2000MOhms

  • Insulation Resistance

    Minimum: 1000MOhms (after MIL-STD-202 Salt Spray)

  • Working Voltage

    250V AC, 140V DC

  • Current Carry at Working Voltage

    6.0Amps (typical D.O.M.J.)

  • Insert/Withdrawal Force

    Dependent On Mating Jack

  • Temperature Range

    -40 to + 85 deg. C / -40 to +185 deg. F

  • Pin

    Nickel-plated copper alloy

  • Sleeve

    Nickel-plated copper alloy

  • Handle

    Nickel-plated copper alloy

  • Cable Clamp

    C.R.S., electrotin-plated

  • Insulator

    Rigid plastic

  • Cable Size

    0.285" / 7.24mm dia.

About Switchcraft Right Angle Cable Mount RCA Plug, Nickel Pin / Nickel Body

The Switchcraft Right Angle Cable Mount RCA Plug features an easy-to-assemble three piece construction: a handle, insulator and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The reduced profile makes it perfect for use behind equipment where space is at a premium. The larger cable clamp and handle will accommodate a variety of cable sizes. Nickel plated plug body with nickel finish handle, it will save time and space in any application.

Switchcraft Right Angle Cable Mount RCA Plug, Nickel Pin / Nickel Body Features

  • Solid center conductor
  • High quality appearance
  • Larger cable clamp provides better strain relief for large cables
  • Longer cable clamp for easier plug assembly and more room for solder connection
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug
  • Longer handle for improved gripping surface and easy plug withdrawal from jack

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Solid center conductor
  • High quality appearance
  • Longer cable clamp
  • Provides ergonomic gripping surface to tighten plug
  • Knurl on the back of handle
  • Longer handle

What's in the box:

  • Switchcraft Right Angle Cable Mount RCA Plug
  • Switchcraft Lifetime Limited Warranty
