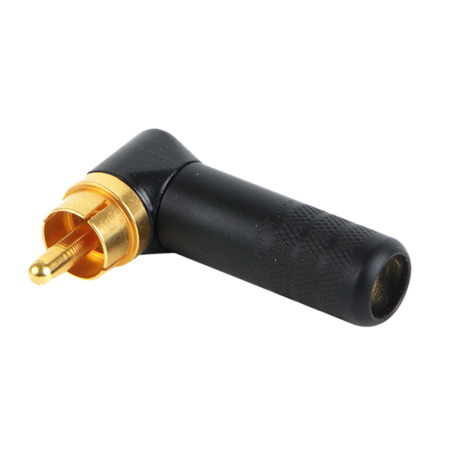

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body
See all Switchcraft items

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body

SKU: SW3502RABAU MFR: 3502RABAU
Be the first to review this item
$25.21
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with a gold-plated RCA plug for pristine audio.
  • The right-angle design of this audio connector is perfect for tight spaces and neat cable management.
  • Enjoy long-lasting durability, ensuring reliable connections for your home theater or studio setup.
  • Easily connect your audio devices with this user-friendly cable mount RCA plug.
  • Achieve optimal sound with a robust RCA connector, designed for peak audio performance.
  • This versatile audio connector is compatible with a wide range of devices, enhancing your setup.
See More Product Details
Free Shipping

See Options

2-Day Shipping - FREE on Orders over 49.99
1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body Specifications

  • Life

    D.O.M.J: Dependent On Mating Jack

  • Contact Resistance (typical D.O.M.J.)

    < 0.020Ohms.

  • Dielectric Withstand Voltage

    Minimum: 500V AC

  • Insulation Resistance at 500V DC

    Minimum: 2000MOhms

  • Insulation Resistance

    Minimum: 1000MOhms (after MIL-STD-202 Salt Spray)

  • Working Voltage

    250V AC, 140V DC

  • Current Carry at Working Voltage

    6.0Amps (typical D.O.M.J.)

  • Insert/Withdrawal Force

    Dependent On Mating Jack

  • Temperature Range

    -40 to + 85 deg. C / -40 to +185 deg. F

  • Pin

    Gold-plated copper alloy

  • Sleeve

    Gold-plated copper alloy

  • Handle

    Black epoxy finish

  • Cable Clamp

    C.R.S., electrotin-plated

  • Insulator

    Rigid plastic

  • Cable Size

    0.285" / 7.24mm dia.

About Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body

The Switchcraft Right Angle Cable Mount RCA Plug features an easy-to-assemble three piece construction: a handle, insulator and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The reduced profile makes it perfect for use behind equipment where space is at a premium. The larger cable clamp and handle will accommodate a variety of cable sizes. Gold plated plug with black finish handle, it will save time and space in any application.

Switchcraft Right Angle Cable Mount RCA Plug, Gold Pin / Black Body Features

  • Solid center conductor
  • High quality appearance
  • Larger cable clamp provides better strain relief for large cables
  • Longer cable clamp for easier plug assembly and more room for solder connection
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug
  • Longer handle for improved gripping surface and easy plug withdrawal from jack

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior signal quality with a gold-plated RCA plug for pristine audio.
  • The right-angle design of this audio connector is perfect for tight spaces and neat cable management.
  • Enjoy long-lasting durability, ensuring reliable connections for your home theater or studio setup.
  • Easily connect your audio devices with this user-friendly cable mount RCA plug.
  • Achieve optimal sound with a robust RCA connector, designed for peak audio performance.
  • This versatile audio connector is compatible with a wide range of devices, enhancing your setup.

What's in the box:

  • Switchcraft Right Angle Cable Mount RCA Plug
  • Switchcraft Lifetime Limited Warranty
