Switchcraft 3.5mm Locking Gold Plug with Black Handle & 0.175" Cable Opening
See all Switchcraft items

Switchcraft 3.5mm Locking Stereo Gold Plug with Black Handle and 0.175" Cable Opening

SKU: SW35HDLBAUS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Switchcraft 3.5mm Stereo Cable Mount Plug, Nickel Body / Nickel Pin
$14.95
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Switchcraft 3.5mm Locking Gold Plug with Black Handle & 0.175" Cable Opening Specifications

  • Contact Resistance

    Maximum: 20mOhms

  • Dielectric Withstanding Voltage

    Minimum: 250V AC

  • Insulation Resistance at 500 VDC

    Minimum: 2000MOhms

  • Max. Working Voltage

    250V AC, 140V DC

  • Current Carry at Working Voltage

    4 Amps

  • Insertion/Withdrawal Force

    Typical 2.5/2lbs

  • Operating Temperature Range

    -20 deg. C to 85 deg. C / -4 deg. F to 185 deg. C

  • Thermal Shock

    MIL-STD-202, Method 107G

  • Vibration

    MIL-STD-202, Method 201

  • Life

    5000 Cycles

  • Cable Diameter

    Maximum: 0.175" / 4.45mm

About Switchcraft 3.5mm Locking Gold Plug with Black Handle & 0.175" Cable Opening

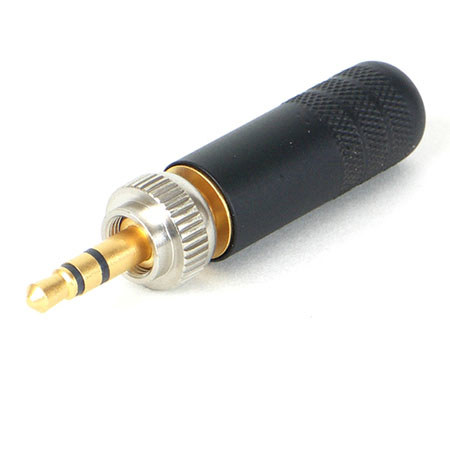

The Switchcraft Locking Stereo Gold Plug with Black Handle is a 3.5mm plug with one piece tip rod for ultra-reliability. Locking collar secures plug to threaded bushing with M6 x 0.5 thread. Handle comes with 0.175" cable opening.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 3.5mm Locking Stereo Gold Plug with Black Handle and 0.175" Cable Opening
  • Switchcraft Lifetime Limited Warranty
