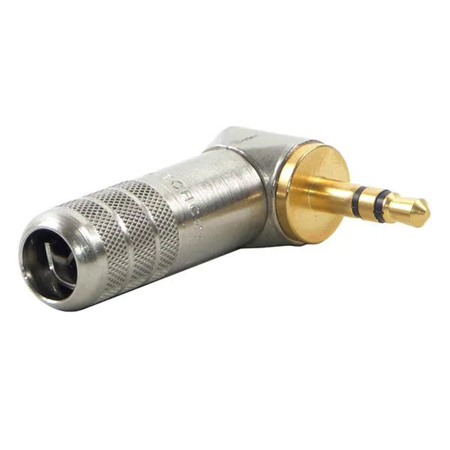

Switchcraft 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter,Nickel/Gold
See all Switchcraft items

Switchcraft 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter, Nickel/Gold

SKU: SW35HDRAAU
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Switchcraft 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter,Nickel/Gold Specifications

  • Contact Resistance

    <0.020 ohms

  • Dielectric

    Withstand Voltage: 250 VAC (min.)

  • Insulation Resistance

    At 500 VDC: 2000 megohms (min.)

  • Working Voltage

    250 VAC, 140 VDC

  • Current Output

    At Working Voltage: 4 AMPS

  • Insertion Force

    Typical 2.5 pounds

  • Withdrawal Force

    Typical 2 pounds

  • Temperature Range

    0 to 66 deg. C / 32 to 151 deg. F (operating) Passed MIL-STD-202F Method 107G (Thermal Shock) and Method 201 (Vibration)

  • Life

    5000 cycles

  • Maximum Cable Length

    0.250" diameter

  • Construction

    Tip Rod: Copper alloy, tin or gold-plated
    Ring: Copper alloy, nickel or gold-plated
    Sleeve: Copper alloy, nickel or gold-plated
    Handle: Copper alloy, nickel or gold-plated
    Cable Clamp: C.R.S., tin-plated
    Solder Terminal: Copper alloy, tin-plated
    Tubular Insulator: Clear plastic

About Switchcraft 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter,Nickel/Gold

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 35HD Series 3.5mm Right Angle Stereo Plug Cable Diameter
  • Switchcraft Lifetime Limited Warranty
