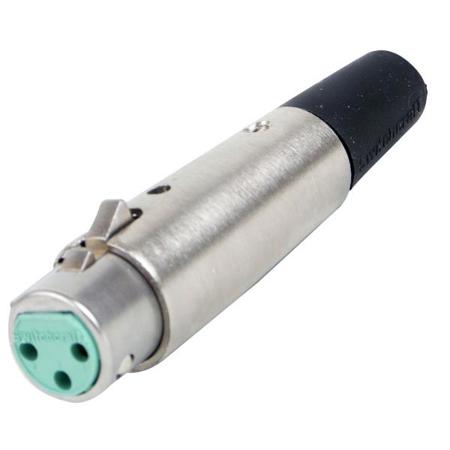

Switchcraft AA Series 3-Pin XLR Female Cable Mount with Silver Pins, Nickel
See all Switchcraft items

Switchcraft AA Series 3-Pin XLR Female Cable Mount with Silver Pins, Nickel

SKU: SWAA3F
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Switchcraft : Picture 1 regular
Switchcraft 3-Pin XLR Female Cable Mount Connector, Package, Silver Pin / Nickel
$9.66
Switchcraft : Picture 1 regular
Switchcraft 3-Pin XLRF Cable Mount Connector, Small Flex, Silver Pins / Nickel
$15.47
Switchcraft : Picture 1 regular
Switchcraft 3-Pin XLR Male Cable Mount Connector, Package, Silver Pin / Nickel
$7.98$5.40
Switchcraft : Picture 1 regular
Switchcraft AA Series 3-Pin XLR Male Cable Mount with Silver Pins, Nickel
$5.93
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the silver pins in the AA Series 3-Pin XLR Female Cable Mount?

The silver pins in the AA Series 3-Pin XLR Female Cable Mount are designed to provide excellent conductivity, ensuring a clear and clean signal path for optimal audio and video quality.

What does the cable crimp strain relief feature do?

The cable crimp strain relief feature in the AA Series 3-Pin XLR Female Cable Mount enhances the durability of the connector and ensures a secure connection, preventing unwanted disconnections and signal interruptions.

Is the AA Series 3-Pin XLR Female Cable Mount compatible with all audio and video devices?

While the AA Series 3-Pin XLR Female Cable Mount is designed for wide-ranging compatibility, it's always best to check the specific requirements of your devices to ensure a perfect fit.

What is the benefit of the nickel finish on the AA Series 3-Pin XLR Female Cable Mount?

The nickel finish on the AA Series 3-Pin XLR Female Cable Mount adds an extra layer of protection against corrosion, further extending the lifespan of the product.

Who can benefit from using the AA Series 3-Pin XLR Female Cable Mount?

The AA Series 3-Pin XLR Female Cable Mount is ideal for anyone involved in professional audio and video setups. This includes sound engineers, videographers, and audio-visual enthusiasts seeking reliable and high-quality equipment.

Reviews about this item

Review Summary

Switchcraft AA Series 3-Pin XLR Female Cable Mount with Silver Pins, Nickel Specifications

Electrical

Electrical

Jump to...

  • Contact Resistance

    50 MOhms maximum, per pole

  • Current Rating

    3 pole - 15A, 4 pole - 10A, 5 and 6 pole - 7.5A, 7 pole - 5A at 125VAC

  • Insulation Resistance

    1,000 MOhms, minimum

  • Dielectric Withstanding Voltage

    1,000 V (RMS)

  • Capacitance

    pF between pins and 4 pF between pins and shell, maximum

Mechanical

Jump to...

  • Insertion/Withdrawal Forces

    7 pound maximum, 5 pound nominal, insertion
    7 pound maximum, 5 pound nominal, withdrawal

  • Wire Size

    #12 wire gauge solid
    #14 wire gauge stranded (3 contact). #14 wire gauge solid
    #16 wire gauge stranded (4 contact). #16 wire gauge solid
    #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid
    #20 stranded (7 contact)

Material

Jump to...

  • Shell

    Die-cast zinc. Satin nickel finish, black velvet

  • Insert Insulation

    Molded thermoplastic

  • Socket Contacts

    Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available

  • Pin Contacts

    Silver-plated copper alloy. Resists tarnishing and provide excellent electrical conductivity. Gold is available

  • Latchlock

    High-strength die-cast zinc

  • Latch Release

    Steel, nickel-plated

  • Latch Detent

    Formed stainless steel

  • Insert Screw

    Stainless steel

  • Flex Relief

    TPR (thermoplastic rubber)

About Switchcraft AA Series 3-Pin XLR Female Cable Mount with Silver Pins, Nickel

AA Series XLR female inline connectors with cable crimp strain relief.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft AA Series 3-Pin XLR Female Cable Mount with Silver Pins
  • Switchcraft Lifetime Limited Warranty
