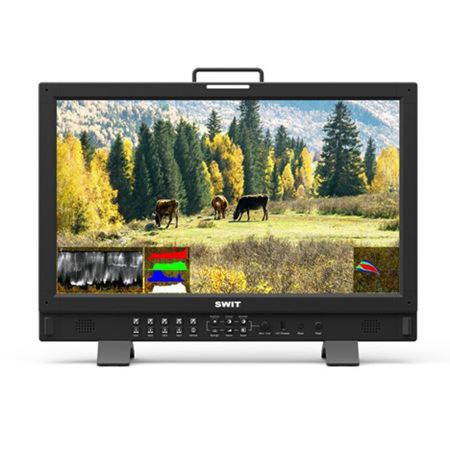

SWIT Electronics BM-H215 21.5" Full HD Film Quad View QLED Production Monitor with V-Mount Battery Plate, Supports 4K HDMI, 12G-SDI, 3G-SDI

Let the BM-H215 21.5" Full HD Film Quad View QLED Production Monitor elevate your filming and video production experience. This high-quality, durable monitor features a 21.5-inch 1920x1080 QLED panel, delivering 100% DCI-P3 coverage for a wide color gamut. With a 400nits LED backlight, 1000:1 contrast, and H/V 178 Degree viewing angle, it ensures clear, detailed, and vibrant images for broadcast and film productions.

The BM-H215 is equipped with innovative multi 4K interfaces, offering 4x SDI inputs and 2x SDI loop outputs. It supports a variety of 4K inputs, including 12GSDI Single link 4K, 4x 3GSDI Quadlink 4K (SQD and 2SI), and HDMI 2.0 (4K60P). This advanced monitor also supports pixel-to-pixel zoom-in for the 4K signal to the FHD panel, enhancing your viewing experience.

This reliable production monitor supports Single link 4K input, including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. It allows for 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view. It also supports mixed formats input, including 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3, along with waveform, vector, audio meters, EOTF, and color gamut selection for each input.

The BM-H215 QLED panel features a Quantum Dot layer, which modifies the LED spectrum to reduce blue light and balance the R/G/B peak, effectively reducing visual fatigue. Its VICO (Visual Health and Comfort) testing scores 1.97, A class, making it an ideal choice for long hours of video editing or broadcast studio productions.

The monitor also provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR, and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, along with Color Gamut selection from LCD native, REC.709, DCI-P3, and REC.2020. It supports input video Payload ID identify, allowing the monitor to automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space, and Color depth according to the Payload ID info.

The BM-H215 also supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. It features built-in 3DLUT calibration software, supporting X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port for automatic self-calibration.

The monitor also supports Zero latency mode for lip-sync monitoring and has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs. It allows for User LUTs upload via USB disk and supports 17x17x17 3DLUT cube files.

The BM-H215 also features max 16-ch embedded audio meters display, Lissajous figures, and 5.1 & 7.1 surround sound patterns. It has a built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality. It also supports webserver remote control by Ethernet LAN connection, allowing for easy control of the monitor.

This advanced production monitor consumes 60W power and supports both AC 100-240V input and 4-pin XLR DC 12-17V input. It is also equipped with a V-mount battery plate on the rear panel for easy powering. The BM-H215 21.5" Full HD Film Quad View QLED Production Monitor is a versatile and reliable choice for all your filming and video production needs.
