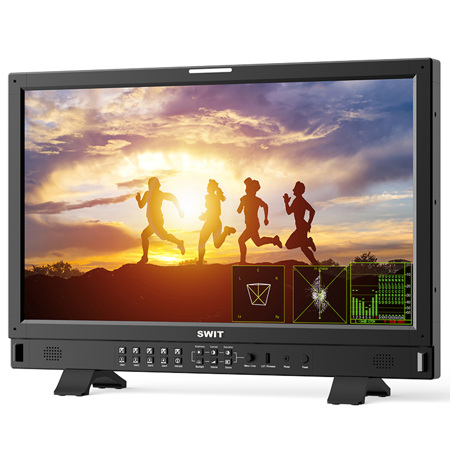

SWIT Electronics BM-H245 23.8" Full HD Film Quad View QLED Production Monitor with V-Mount Battery Plate, Supports 4K HDMI, 12G-SDI, 3G-SDI

SKU: SWBMH245 MFR: BM-H245
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the 23.8" Full HD production monitor, perfect for detailed video work.
  • Enjoy vibrant colors and wide viewing angles on this QLED monitor, ensuring accurate image representation.
  • Supports 4K HDMI and 12G-SDI inputs, making it a versatile choice for professional video production setups.
  • Utilize quad view functionality to monitor multiple sources simultaneously, streamlining your workflow efficiently.
  • Features a V-Mount battery plate for on-location flexibility, providing power wherever your shoot takes you.
  • Achieve precise color grading with 10-bit color depth, essential for post-production video accuracy.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SWIT Electronics BM-H245 Specifications

LCD Performance

LCD Performance

Jump to...
  • Size

    23.8"

  • Display Area

    527.04 x 296.46mm

  • Resolution

    1920x1080

  • Aspect Ratio

    16:9

  • Brightness

    400nits

  • Contrast

    1000:1

  • Color Depth

    10bit (8+2FRC)

  • Signal Process

    18-bit

  • Viewing Angle (H x V)

    178 Degree /178 Degree

Input/Output

Jump to...
  • Input

    1x BNC: 12G/6G/3G/HD/SD-SDI input
    3x BNC: 3G/HD/SD-SDI input
    1x HDMI: HDMI 2.0 input
    1x RS485: TSL 3.1/4.0 UMD input
    1x RS485: GPI (Tally) input
    1x RJ45: 1000M Ethernet input for Webserver IP control

  • Output

    1x BNC: 12G/6G/3G/HD/SD-SDI loop output
    1x BNC: 3G/HD/SD-SDI output
    1x RS485: TSL 3.1/4.0 UMD output

  • Analog Audio

    3.5mm headphone and speaker

Video Format

Jump to...
  • SDI 1

    4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    2048x1080i (50 / 59.94 / 60)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    720p (60 / 59.94 / 50)
    480i (59.94), 576I (50)

  • SDI 2/3/4

    2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    720p (60 / 59.94 / 50)
    480i (59.94), 576I (50)

  • Quad Link 4K (Each channel)

    2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

  • HDMI

    4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)

General

Jump to...
  • Input Voltage

    DC 12V-17V, AC 100-240V, 50/60Hz

  • Power Consumption

    60W

  • Temperature

    Working: 32 Degree F - 122 Degree F (0 Degree C - +50 Degree C)
    Storage: 5 Degree F - 140 Degree F (-15 Degree C - +60 Degree C)

  • Humidity

    Working :10% - 90%
    Storage: 10% - 90%

  • Dimensions

    22.87 x 15.44 x 2.89" (580.9 x 392.3 x 73.6mm)

  • Weight

    Main Body: 14.77 lbs (6.7kg)

  • UPC Code

    6948193509020

About SWIT Electronics BM-H245

Bring your film and broadcast productions to life with the BM-H245 23.8" Full HD Quad View QLED Production Monitor. This high-performance monitor features a 23.8-inch 1920x1080 QLED panel, offering 100% DCI-P3 coverage for a wide color gamut. With a 400nits LED backlight, 1000:1 contrast, and a 178-degree viewing angle, it delivers superior image quality for professional applications.

The BM-H245 is equipped with multiple 4K interfaces, including 4x SDI inputs and 2x SDI loop outputs. It supports a variety of 4K inputs including 12GSDI Single link 4K, 4x3GSDI Quadlink 4K, and HDMI 2.0 (4K60P), providing flexibility for your production needs. The monitor also supports pixel-to-pixel zoom-in for the 4K signal to the FHD panel, ensuring crisp and clear images.

This production monitor offers various display modes, including Single link 4K input, Quad link 4x 3GSDI 4K inputs, and the ability to input 4x independent sources for multiview. It also supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, along with waveform, vector, audio meters, EOTF, and color gamut selection for each input.

The BM-H245 QLED panel incorporates a Quantum Dot layer, which modifies the LED spectrum to reduce blue light and balance the R/G/B peak. This feature helps to reduce visual fatigue, making it ideal for long hours of video editing or broadcast studio productions.

The monitor supports HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR, and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, along with Color Gamut selection from LCD native, REC.709, DCI-P3, and REC.2020. It also features an auto setting for input video Payload ID, allowing the monitor to automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space, and Color depth according to the Payload ID info.

For precise color calibration, the BM-H245 comes with built-in 3DLUT calibration software, supporting X-rite i1 and Jeti Specbos 1211 probes. This feature allows the monitor to generate color patterns, compare color differences, and calibrate itself automatically.

The BM-H245 also supports zero latency mode for lip-sync monitoring, built-in multi-camera logs for HDR/SDR De-log LUTs, and the ability to upload User LUTs via USB disk. It displays up to 16-ch embedded audio meters and supports Lissajous figures and 5.1 & 7.1 surround sound patterns.

With a built-in eye pattern, you can check the quality of input video transmission via SDI cable. The monitor also supports webserver remote control by Ethernet LAN connection, allowing you to control the monitor's functions from your computer's web browser.

The BM-H245 consumes 60W power and supports both AC 100-240V input and 4-pin XLR DC 12-17V input. It comes equipped with a V-mount battery plate on the rear panel, providing flexibility for on-location shoots. Experience the difference with the BM-H245 23.8" Full HD Quad View QLED Production Monitor.

SWIT Electronics BM-H245 Features

  • 23.8" 1920x1080 QLED Panel
  • 100% DCI-P3 wide color gamut coverage
  • VICO 1.97 A-class Eye Protecting LCD
  • 12GSDI, 4x 3GSDI, HDMI2.0 4K input
  • 4-ch SDI/HDMI mixed multiview
  • 2-ch SDI/HDMI PBP or PIP view
  • Multi Color Gamut & HDR/SDR Viewing
  • Payload ID auto setting
  • 18-bit internal color processing
  • Audio/Video Zero latency for lip-sync
  • 3DLUT Auto Self-calibration without PC
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram / Eye pattern
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous pattern
  • 5.1 & 7.1 surround sound phase pattern
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade

Key Features

  • Experience superior clarity with the 23.8" Full HD production monitor, perfect for detailed video work.
  • Enjoy vibrant colors and wide viewing angles on this QLED monitor, ensuring accurate image representation.
  • Supports 4K HDMI and 12G-SDI inputs, making it a versatile choice for professional video production setups.
  • Utilize quad view functionality to monitor multiple sources simultaneously, streamlining your workflow efficiently.
  • Features a V-Mount battery plate for on-location flexibility, providing power wherever your shoot takes you.
  • Achieve precise color grading with 10-bit color depth, essential for post-production video accuracy.

What's in the box:

  • SWIT Electronics BM-H245 23.8" Full HD Film Quad View QLED Production Monitor
  • V-Mount Plate
  • 2x Desktop Stand Feet
  • Power Cable
  • User Manual
  • SWIT Electronics 2 Year Limited Warranty
