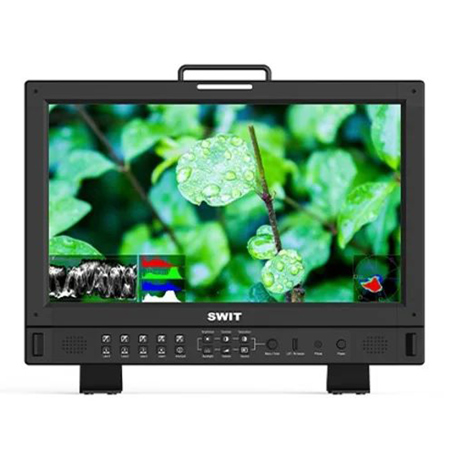

SWIT Electronics BM-U175 17.3" 4K Ultra HD Reference Studio Monitor with V-Mount Battery Plate, Supports 4K/8K 12G-SDI

SKU: SWBMU175 MFR: BM-U175
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 17.3" 4K Ultra HD reference monitor.
  • Ensure accurate color representation with this production monitor's 8-bit color depth.
  • Connect seamlessly using 12G-SDI and HDMI 2.0 inputs on this video monitor.
  • Enjoy flexible mounting options with included rack mount and desktop feet.
  • This studio monitor supports various 4K and 8K formats for versatile use.
  • Optimize your workflow with this monitor's user-friendly webserver IP control.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SWIT Electronics BM-U175 Specifications

LCD Performance

LCD Performance

Jump to...
  • Size

    17.3" (439.42mm)

  • Display area

    15.03 x 8.45" (381.88 x 214.82mm)

  • Resolution

    3840 x 2160

  • Aspect ratio

    16:9

  • Brightness

    300nits

  • Contrast

    800:1

  • Color depth

    16.77M colors, 8-bit

  • Signal process

    18-bit

  • Viewing angle

    178 Degree (H) /178 Degree (V)

  • BNC

    4x 12G/6G/3G/HD/SD-SDI input

  • HDMI

    1x HDMI 2.0 input

  • SFP

    1x Optical Fiber input (By optional SFP adapter)

  • RS485

    1x TSL 3.1/4.0 UMD input
    1x GPI (Tally) input

  • RJ45

    1x 1000M Ethernet input for Webserver IP control

  • BNC

    4x 12G/6G/3G/HD/SD-SDI loop output

  • RS485

    1x TSL 3.1/4.0 UMD output

  • Analog audio

    3.5mm headphone and speaker

Video Format

Jump to...
  • SDI 1/2/3/4

    4096 x 2160p (60/59.94/50/30/29.97/25/24/23.98)
    3840 x 2160p (60/59.94/50/30/29.97/25/24/23.98)
    2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98)
    2048 x 1080i (50/59.94/60)
    1080p (60/59.94/50/30/29.97/25/24/23.98)
    1080i (60/59.94/50)
    1080psf (30/29.97/25/24/23.98)
    720p (60/59.94/50)
    480i (59.94), 576I (50)

  • Quad Link 4K

    Each channel: 2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/23.98)

  • Quad Link 8K

    Each Channel: 4096 2160p (60/59.94/50/30/29.97/25/24/23.98)
    3840 2160p (60/59.94/50/30/29.97/25/24/23.98)

  • HDMI

    1080p (60/59.94/50/30/29.97/25/24/23.98)
    4096 x 2160p (60/59.94/50/30/29.97/25/24/23.98)
    3840 x 2160p (60/59.94/50/30/29.97/25/24/23.98)
    1080i (60/59.94/50)
    720p (60/59.94/50)

General

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

  • Input Voltage

    DC 12V-17V, AC 100-240V, 50/60Hz

  • Power Consumption

    60W

  • Working Temperature

    32 Degree F - 122 Degree F (0 Degree C-+50 Degree C)

  • Working Humidity

    10%-90%

  • Storage Temperature

    5 Degree F - 140 Degree F (-15 Degree C-+60 Degree C)

  • Storage Humidity

    10%-90%

  • Dimensions

    17.16 x 12.23 x 3.49" (436 x 310.8 x 88.8mm)

  • Weight

    Main Body: 13 lbs (5.9kg)

  • UPC Code

    6948193507873

About SWIT Electronics BM-U175

Find the perfect balance of innovation and functionality with the BM-U175 17.3" 4K Ultra HD Reference Studio Monitor. This high-quality monitor is equipped with a 17.3" 8-bit+2FRC LCD panel, offering an Ultra HD resolution of 3840 x 2160. With a 300nits LED backlight and an 800:1 contrast ratio, it delivers clear, vibrant images with a 91.5% DCI-P3 color gamut.

This professional-grade studio monitor supports multiple 4K/8K interfaces, including 12GSDI 4-in 4-out, Single link 4K, Quad link 4K, Quad link 8K, HDMI 2.0 (4K60P), and optional 12GSDI and ST2110 IP via SFP Fiber. It's designed to handle a variety of input formats, including 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3, providing flexibility for your production needs.

The BM-U175 monitor stands out with its unique display modes. It supports Single link 4K input and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, with waveform, vector, audio meters, EOTF, and color gamut selection for each input.

Experience the versatility of HDR/SDR EOTFs with HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR, and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs. The color gamut selection ranges from LCD native, BT.709, DCI-P3 to BT.2020, offering a wide spectrum of color possibilities.

The BM-U175 monitor also features a built-in 3DLUT auto self-calibration system, supporting X-rite i1 and Jeti Specbos 1211 probes for accurate color calibration. It also supports zero latency mode for lip-sync monitoring and has built-in multi camera logs for HLG1000, PQ1000, Rec 709 SDR conversion LUTs.

For audio monitoring, it displays up to 16-ch embedded audio meters and supports Lissajous and 5.1+2 surround sound patterns. It also includes a built-in eye pattern to check input video transmission quality via SDI cable.

With its webserver IP remote control feature, you can control the monitor via an Ethernet LAN connection, making it easy to adjust picture parameters, set up video/audio functions, and assign function keys.

Designed for durability and convenience, the BM-U175 monitor comes with a V-Mount battery plate for portable use and a pair of rack ears for easy installation onto a standard 19-inch rack. This reliable, innovative monitor is an excellent choice for any professional video production setup.

SWIT Electronics BM-U175 Features

  • 17.3" LCD Panel, 3840 x2160 resolution
  • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
  • 12GSDI via SFP Fiber input (Optional)
  • ST2110 IP via SFP Fiber input (Optional)
  • 3DLUT Auto Self-calibration without PC
  • Audio/Video 0 latency for lip-sync HLG/PQ/S-log3 HDR EOTF
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade
  • 19" rack mountable, 7U height

Key Features

  • Experience superior clarity with this 17.3" 4K Ultra HD reference monitor.
  • Ensure accurate color representation with this production monitor's 8-bit color depth.
  • Connect seamlessly using 12G-SDI and HDMI 2.0 inputs on this video monitor.
  • Enjoy flexible mounting options with included rack mount and desktop feet.
  • This studio monitor supports various 4K and 8K formats for versatile use.
  • Optimize your workflow with this monitor's user-friendly webserver IP control.

What's in the box:

  • SWIT Electronics BM-U175 17.3" 4K Ultra HD Reference Studio Monitor
  • Power Supply
  • V-Mount Battery Plate
  • 2x Desktop Feet
  • 2x 19" Rack Mount Bracket
  • SWIT Electronics 2 Year Limited Warranty
