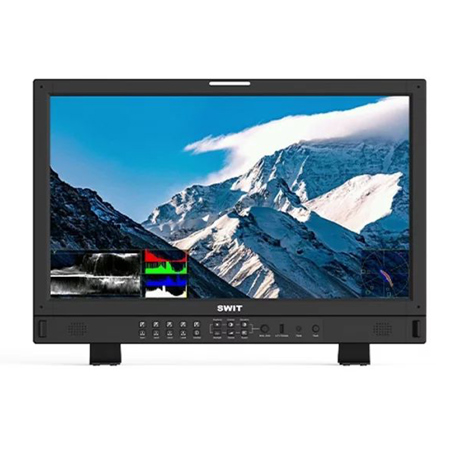

SWIT Electronics BM-U245 23.8" 4K Ultra HD Reference Studio Monitor with V-Mount Battery Plate, Supports 4K/8K 12G-SDI
SKU: SWBMU245 MFR: BM-U245
$5,900.00
$6,000.00
Save: $100 OR
Key Features
- Experience stunning clarity with this 23.8" 4K Ultra HD reference studio monitor.
- Ensure accurate color grading using the BM-U245's 10-bit color depth display.
- Easily power your monitor on location with the included V-Mount battery plate.
- Connect various devices using 12G-SDI, HDMI 2.0, and optional optical fiber inputs.
- Rely on this production monitor's wide viewing angle for consistent image quality.
- Control the monitor remotely via Ethernet with webserver IP for streamlined workflows.
Ships from Manufacturer?
Free Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Q&A
About SWIT Electronics BM-U245
Overwhelm your senses with the BM-U245 23.8" 4K Ultra HD Reference Studio Monitor, a high-quality, professional-grade tool designed for advanced video production and post-production. This innovative monitor boasts a 10-bit LCD panel with an Ultra HD resolution of 3840 x 2160, ensuring a crystal-clear, detailed image that surpasses many alternatives on the market.
The BM-U245 is equipped with a 300nits LED backlight and a 1000:1 contrast ratio, providing vibrant colors and deep blacks for a truly immersive viewing experience. It covers 94.1% of the DCI-P3 color gamut, offering a wide range of colors for accurate color grading. The viewing angle of H178 Degree / V178 Degree ensures a consistent image quality from all perspectives.
This advanced studio monitor supports multiple 4K/8K interfaces, including 12GSDI 4-in 4-out, Single link 4K, Quad link 4K, Quad link 8K, and HDMI 2.0 (4K60P). Optional features include 12GSDI via SFP Fiber and ST2110 IP via SFP Fiber. The BM-U245 can handle a variety of input formats, including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
The BM-U245 is not just a monitor; it's a comprehensive tool for video production. It supports HDR/SDR EOTFs, including HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR, and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs. It also offers a color gamut selection from LCD native, BT.709, DCI-P3, and BT.2020.
The monitor's unique feature is its V-Mount battery plate, which allows for battery-powered operation, making it a portable solution for on-the-go video production.
The BM-U245 also features a built-in 3DLUT auto self-calibration system, supporting X-rite i1 and Jeti Specbos 1211 probes for accurate color calibration. It also supports zero latency mode for lip-sync monitoring, built-in multi-camera logs for HDR/SDR De-log LUTs, and a maximum of 16-ch embedded audio meters display.
The BM-U245 is also equipped with a built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality. It also supports webserver remote control by Ethernet LAN connection, allowing you to control the monitor from your computer without installing any apps.
In summary, the BM-U245 23.8" 4K Ultra HD Reference Studio Monitor is a durable, advanced, and innovative tool for any professional video production setup.
SWIT Electronics BM-U245 Features
- 23.8" LCD Panel, 3840 x2160 resolution
- 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
- 12GSDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for lip-sync
- HLG/PQ/S-log3 HDR EOTF
- Payload ID auto setting
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
