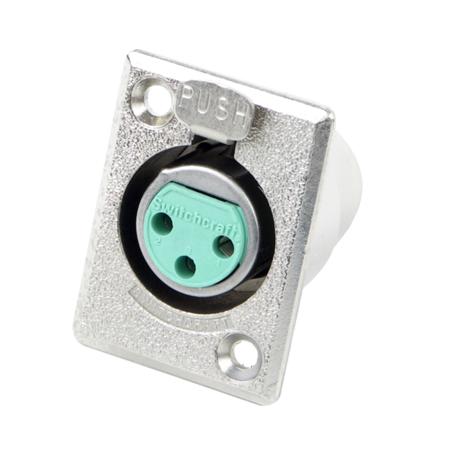

Switchcraft D Series 3-Pin XLR Female Panel Mount Connector, Silver Pins / Nickel Finish

SKU: SWD3FPKG MFR: D3FPKG
$8.58
Earn VIP Reward Points

Key Features

  • Get superior audio connectivity with this 3-Pin XLR female panel mount connector.
  • Achieve pristine sound: Silver-plated pins ensure optimal signal transfer, always!
  • Durable nickel finish XLR connector built to last, resisting wear and corrosion.
  • Perfect for custom audio setups: Mounts easily on any panel for secure connections.
  • Enjoy high compatibility: Use this XLR panel jack with various audio devices easily.
  • Experience reliable performance: Ideal for pro audio, offering stable connections.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Switchcraft 3-Pin XLR Female Connector, Silver Pins / Nickel Finish Specifications

  • Connector

    3-Pin XLR Female

  • Contact Resistance

    50 mOhms maximum, per pole

  • Current Rating

    15A

  • Voltage Rating

    125 V

  • Insulation Resistance

    1,000 MO, minimum

  • Dielectric Withstanding Voltage

    1,000 V (rms)

  • Capacitance

    2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F)

  • Insertion/Withdrawal Forces

    7 pound maximum, 5 pound nominal, insertion / 7 pound maximum, 5 pound nominal, withdrawal

  • Wire Size

    #12 wire gauge solid, #14 wire gauge stranded

  • Shell

    Satin nickel finish

  • Insert Insulation

    Molded thermoplastic

  • Socket Contacts

    Silver-plated copper alloy tarnish-resistant, bifurcated on 3-contact type

  • Pin Contacts

    Silver-plated copper alloy. Resists tarnishing and provides excellent electrical conductivity

  • Latchlock

    High-strength die-cast zinc

  • Latch Release

    Nickel-plated

  • Latch Detent

    Formed stainless steel

  • Insert Screw

    Stainless steel

  • Flex Relief

    TPR (thermoplastic rubber)

About Switchcraft 3-Pin XLR Female Connector, Silver Pins / Nickel Finish

Take your audio connections to the next level with the Switchcraft D Series 3-Pin XLR Female Panel Mount Connector, a premium choice for professionals in the audio and video industry. This robust connector is designed with high-quality silver pins that ensure superior signal integrity and a nickel finish that provides a sleek, professional appearance while offering enhanced durability.

The connector features an adjustable dual pressure plate cable clamp, which allows for a secure and reliable connection to a wide range of cable sizes, ensuring compatibility with standard audio cables. The flexible strain relief design protects the cable from stress and damage, extending the lifespan of both the cable and the connector.

For those who require quick and efficient operations, the Fas-Disconnect Detent is a standout feature. This design allows for the immediate disconnection of locked connectors with a minimal force of 4 pounds (1.8 kg), streamlining the setup and breakdown process in fast-paced environments.

The removable pin insert adds an extra layer of versatility, making maintenance and repair tasks simpler and more convenient. This feature allows for easy access to the pins for cleaning or replacement, which is essential for maintaining the quality of your connections over time.

Crafted with attention to detail, the Switchcraft D Series 3-Pin XLR Female Panel Mount Connector is engineered to provide a secure cable lock and strain relief, ensuring that your connections are not only tight but also protected from the wear and tear of regular use.

Whether you're setting up a professional recording studio, live sound system, or any other audio application that demands the highest quality components, this connector is designed to meet the rigorous standards of the industry. Enhance your audio equipment's performance and reliability with this top-tier XLR connector, a must-have for audio professionals who demand the best.

Switchcraft 3-Pin XLR Female Connector, Silver Pins / Nickel Finish Features

  • High-quality 3-Pin XLR Female Panel Mount Connector for professional audio and video applications
  • Features silver pins for superior signal integrity and a durable nickel finish
  • Adjustable dual pressure plate cable clamp ensures secure and reliable connections
  • Flexible strain relief design protects cables from stress and damage
  • Fas-Disconnect Detent allows for immediate disconnection of locked connectors with minimal force
  • Removable pin insert for easy maintenance and repair tasks, enhancing connector longevity

Key Features

  • Get superior audio connectivity with this 3-Pin XLR female panel mount connector.
  • Achieve pristine sound: Silver-plated pins ensure optimal signal transfer, always!
  • Durable nickel finish XLR connector built to last, resisting wear and corrosion.
  • Perfect for custom audio setups: Mounts easily on any panel for secure connections.
  • Enjoy high compatibility: Use this XLR panel jack with various audio devices easily.
  • Experience reliable performance: Ideal for pro audio, offering stable connections.

What's in the box:

  • Switchcraft 3-Pin XLR Female Panel Mount Connector
  • Switchcraft Lifetime Limited Warranty
