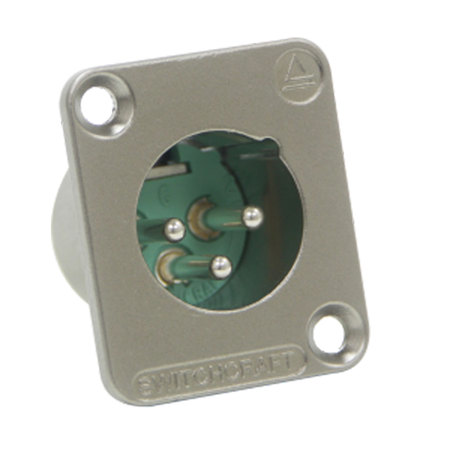

Switchcraft 3-Pin XLR Male Panel Mount Connector, Silver Pins / Nickel Finish
See all Switchcraft items

Switchcraft D Series 3-Pin XLR Male Panel Mount Connector, Silver Pins / Nickel Finish

SKU: SWD3M
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Switchcraft 3-Pin XLR Male Panel Mount Connector, Silver Pins / Nickel Finish Specifications

  • Connector

    3-Pin XLR Male

  • Contact Resistance

    50 mOhms maximum, per pole

  • Current Rating

    15A

  • Voltage Rating

    125 V

  • Insulation Resistance

    1,000 MO, minimum

  • Dielectric Withstanding Voltage

    1,000 V (rms)

  • Capacitance

    2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F)

  • Insertion/Withdrawal Forces

    7 pound maximum, 5 pound nominal, insertion / 7 pound maximum, 5 pound nominal, withdrawal

  • Wire Size

    #12 wire gauge solid, #14 wire gauge stranded

  • Shell

    Satin nickel finish

  • Insert Insulation

    Molded thermoplastic

  • Socket Contacts

    Silver-plated copper alloy tarnish-resistant, bifurcated on 3-contact type

  • Pin Contacts

    Silver-plated copper alloy. Resists tarnishing and provides excellent electrical conductivity

  • Latchlock

    High-strength die-cast zinc

  • Latch Release

    Nickel-plated

  • Latch Detent

    Formed stainless steel

  • Insert Screw

    Stainless steel

  • Flex Relief

    TPR (thermoplastic rubber)

About Switchcraft 3-Pin XLR Male Panel Mount Connector, Silver Pins / Nickel Finish

The Switchcraft 3-Pin XLR Male Panel Mount connector comes with silver pins and Nickel finish. It has adjustable dual pressure plate cable clamp, flexible strain relief and removable pin insert. Fas-Disconnect Detent permits immediate disconnect of locked connectors with a 4-pound (1.8 kg) force. Dual pressure plates provides secure cable lock and strain relief for all standard size cables.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft 3-Pin XLR Male Panel Mount Connector
  • Switchcraft Lifetime Limited Warranty
