Switchcraft 2x48 Din 1.0/2.3 Feedthru Backpanel, 1RU, 0-3GHz Frequency Range, Impedance 75 Ohms

SKU: SWDIN96K1D MFR: DIN96K1D
Earn VIP Reward Points

Key Features

  • Optimize your video switching with this 2x48 DIN feedthru backpanel for a reliable connection.
  • Achieve high-quality video distribution with a 0-3GHz frequency range for superior performance.
  • Ensure wide compatibility with 75 Ohms impedance, ideal for professional video switchers.
  • Experience low latency video signal transmission, perfect for live streaming and broadcasting.
  • Enjoy good value with this durable Switchcraft backpanel, designed for easy setup and use.
  • Rely on this video component for seamless integration in your video switching and distribution setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Switchcraft 2x48 Din 1.0/2.3 Feedthru Backpanel Specifications

  • Impedance

    75 Ohms

  • Frequency Range

    0-3 Ghz

  • W/S Voltage

    250 V (RMS)

  • Insulation Resistance

    1 GOhms Minimum

  • Contact Resistance

    30 MOhms Maximum (Initial)

  • Insertion Loss

    -1.0 Db Maximum

  • Return Loss

    Per SMPTE 424 M

  • Operating Temperature

    -40 to +85 deg. C / -40 to 185 deg. F

  • Life

    500 Cycles Minimum

  • Front Panel

    Aluminum, Anodized

  • Insert

    Thermoplastic, Black

  • Connector Shell

    Copper Alloy, Nickel Plated

  • Contact

    Copper Alloy, Gold Plated

  • Insulators

    Thermoplastic

  • Horizontal Marking Strip

    Thermoplastic, White

  • Designation Strip Cover

    Thermoplastic, Clear

  • Key-Hole Clips

    Thermoplastic

  • Screws

    Steel, Zinc or Nickel Plated

  • RoHS Compliant

    Yes

About Switchcraft 2x48 Din 1.0/2.3 Feedthru Backpanel

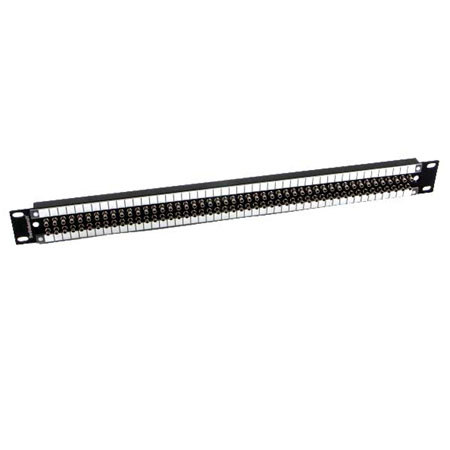

The Switchcraft 2x48 Din 1.0/2.3 Feedthru Backpanel 1RU patchbay loaded with 96 of this premium DIN 1.0/2.3 feed-thru connectors. Ideal for extension and ease of access to the I/O on large format HD routing systems. Bring all of the hard to reach DIN 1.0/2.3 connections on your router to an easier access point in your rack.

Key Features

  • Optimize your video switching with this 2x48 DIN feedthru backpanel for a reliable connection.
  • Achieve high-quality video distribution with a 0-3GHz frequency range for superior performance.
  • Ensure wide compatibility with 75 Ohms impedance, ideal for professional video switchers.
  • Experience low latency video signal transmission, perfect for live streaming and broadcasting.
  • Enjoy good value with this durable Switchcraft backpanel, designed for easy setup and use.
  • Rely on this video component for seamless integration in your video switching and distribution setup.

What's in the box:

  • Switchcraft 2x48 Din 1.0/2.3 Feedthru Backpanel
  • 4x #12-24 Mounting Screws
  • Switchcraft Lifetime Limited Warranty
