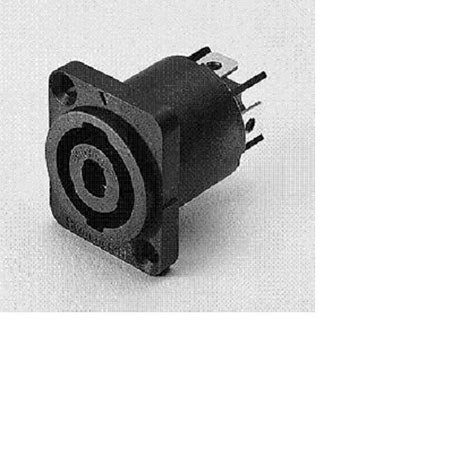

Switchcraft HPC Rectangular Mount Receptacle, .200" Flange Depth
See all Switchcraft items

Switchcraft Speakon Rectangular Panel Mount Receptacle, .140" Dia Mounting Holes, .200" Flange Depth, .250" Internal Faston Terminals

SKU: SWHPCP42F
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Switchcraft HPC Rectangular Mount Receptacle, .200" Flange Depth Specifications

  • RoHS

    Yes

  • Gender

    Female

  • Number of Positions

    4

  • Termination Style

    Quick Disconnect

  • Mounting Style

    Chassis (Panel)

  • Contact Plating

    Silver

  • Contact Material

    Copper Alloy

  • Voltage Rating

    1.5 kV

  • Current Rating

    50 A

  • Faston Terminals

    0.250" (0.63cm)

  • Countersunk Mounting Holes

    Diameter: 0.140" (0.35cm)

  • Flange Depth

    0.200" (0.50cm)

About Switchcraft HPC Rectangular Mount Receptacle, .200" Flange Depth

The Switchcraft Speakon Rectangular Panel Mount Receptacle (.140" Dia Mounting Holes) is updated with new silver-plated contact materials that boost the contact ratings to 50A per UL 1977 on Faston versions. It has 0.200" depth flanges that allows for rear mounting of the HPC Series and proper mating of all cord plugs. The panel mount has 0.250" Faston terminals and either straight or right angle PC mount terminals. It also has, as an option, a mounting post which allows the connector to snap onto the PC board for wave soldering.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft Speakon Rectangular Panel Mount Receptacle
  • Switchcraft Lifetime Limited Warranty
