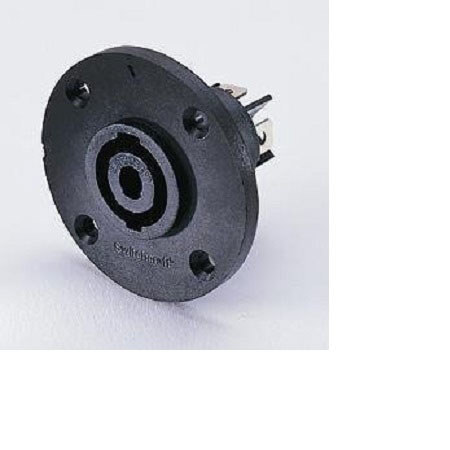

Switchcraft HPC Round Panel Mount Receptacle, .187" Internal Faston Terminals
See all Switchcraft items

Switchcraft Speakon Round Panel Mount Receptacle, .152" Dia Countersunk Mounting Holes, .100" Flange Depth, .187" Internal Faston Terminals

SKU: SWHPCPR41F1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the benefits of the silver-plated contact materials in the Switchcraft Speakon Round Panel Mount Receptacle?

The silver-plated contact materials enhance the contact ratings of the receptacle, boosting them to 50A per UL 1977. This offers superior performance and reliability.

What is the purpose of the .100" depth flange in this Speakon Round Panel Mount Receptacle?

The .100" depth flange allows for rear mounting of the HPC Series and ensures proper mating with all cord plugs, offering flexibility and convenience during installation.

What options do the .187" Faston terminals offer?

The .187" Faston terminals offer the versatility of either straight or right-angle PC mount terminals, allowing for a customized setup depending on your specific needs.

How does the optional mounting post improve the functionality of the receptacle?

The optional mounting post allows the connector to snap onto the PC board, facilitating wave soldering and making the installation process smoother and more efficient.

How does the Switchcraft Speakon Round Panel Mount Receptacle contribute to my audio and video equipment setup?

This high-quality receptacle is an essential component for any audio and video equipment setup, offering superior performance, functionality, and a user-friendly design.

Reviews about this item

Review Summary

Switchcraft HPC Round Panel Mount Receptacle, .187" Internal Faston Terminals Specifications

  • RoHS

    Yes

  • Number of Positions

    4

  • Termination Style

    Quick Disconnect

  • Mounting Style

    Chassis (Panel)

  • Contact Plating

    Silver

  • Contact Material

    Copper Alloy

  • Voltage Rating

    1.5 kV

  • Current Rating

    50 A

  • Faston Terminals

    0.187" (0.47cm)

  • Countersunk Mounting Holes

    Diameter: 0.152" (0.38cm)

  • Flange Depth

    0.100" (0.25cm)

About Switchcraft HPC Round Panel Mount Receptacle, .187" Internal Faston Terminals

The Switchcraft Speakon Round Panel Mount Receptacle (.187" Faston Terminals) is updated with new silver-plated contact materials that boost the contact ratings to 50A per UL 1977 on Faston versions. It has 0.100" depth flanges that allows for rear mounting of the HPC Series and proper mating of all cord plugs. The panel mount has 0.187" Faston terminals and either straight or right angle PC mount terminals. It also has, as an option, a mounting post which allows the connector to snap onto the PC board for wave soldering.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Switchcraft Speakon Round Panel Mount Receptacle
  • Switchcraft Lifetime Limited Warranty
