SWIT Electronics M-1071H 2x 7" 3G/HD/SD-SDI/HDMI/CVBS 19" 3U Standard Rack Mounting LCD Monitor, 1024x600

FFS panel with LED backlight
The M-1071H is made of 2x 7-inch FFS (Fringe field switching) LCD panel, with 1024x600 resolution and LED backlight, 400cd/m2 brightness and 900:1 contrast. The viewing angle is Horizontal: 160deg. / Vertical: 160deg.

• 2x 7" FFS LCD Panel with LED backlight
• 19-inch 3U standard rack mounting
• 1024x600, 900:1 contrast, H/V 160deg. viewing angle
• 16:9 display area with 4:3 adjustment
• Underscan / Overscan, safe area
• 3G/HD/SD-SDI, HDMI, CVBS input
• Embedded audio monitoring
• Real time video zoom-in and flip
• 3-color TALLY light
• Customer editable video TITLE

Multi-format Input/output - 3G-SDI / HDMI / CVBS / L&R audio
• Each LCD of M-1071H monitor supports:
• 3G/HD/SD-SDI input x 1
• 3G/HD/SD-SDI loop output x 1
• HDMI input x 1
• HDMI loop output x 1
• CVBS input x 1
• CVBS loop output x 1
• L&R analog audio input x 1

Embedded Audio Monitoring
Via 3.5mm headphone or Speaker
The monitor supports SDI and HDMI embedded audio (ch-1 and ch-2) and L&R analog audio output via 3.5mm headphone socket.

Safe Area and Scale Marker
You can select the scale of safe area frame from 80%, 85%, 90% and 95% in the menu system. And under HD input, the monitor can display a center 4:3 marker, to help check image composition when using HD recording while SD broadcasting.

Power Supply

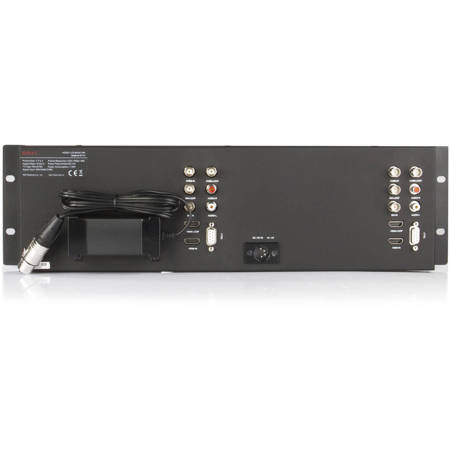

M-1071H provides a 4-pin XLR socket of DC 6.5-17V power input, for the both 2 screens and an AC-DC adaptor is attached on the rear panel of the monitor.

3-color TALLY Light
DB-9 input signal
There are front TALLY lights for each screen, with 3 colors display and controlled via DB-9 ports on the rear panel.

Installation
M-1071H is standard 19" rack mount fixing, occupies 3U height. The monitor is +/-30deg. up and down rotatable when installed on racks.

Real Time 2-step Zoom-in
The first step zoom-in function is specially designed for Canon DSLR, to cut the black bar around the HDMI output video and enlarge the center effective recorded video to full screen. The second step zoom-in is to enlarge the video 4 times, to check the image details and help to focus. The zoom-in function is real time operation, available when preview, recording or play back.

Compact Main Board
The monitor main board is integrated designed. The chip, controlling circuit, input/output interfaces are arranged in an entire board, which ensures the stability and safety of the monitor. Meanwhile, the compact board can reduce monitor thickness and help the cooling of the whole unit.
