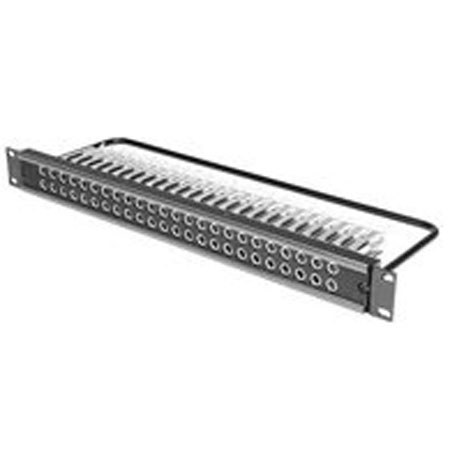

Switchcraft 2x24 Point Long Frame With Solder Lug Input/Output and Cable Tray, 1RU, Full Normals Out

SKU: SWMT48K1FNX MFR: MT48K1FNX
Earn VIP Reward Points

Key Features

  • Optimize audio connectivity with this Switchcraft 48-point patch bay for clear sound.
  • Durable steel frame ensures long-lasting performance in any professional audio setup.
  • Easily manage signal flow with full normals out, simplifying complex audio routings.
  • High-quality jacks provide reliable connectivity for pristine audio signal transfer.
  • Streamline your studio with integrated cable tray for organized cable management.
  • Achieve superior sound quality with low contact resistance in every connection.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 1RU, Full Normals Out Specifications

  • Material 1

    Jacks:
    Frame: Steel, nickel-plated
    Bushing: Brass, nickel-plated
    Springs: Nickel silver solder lugs
    Ground Terminal: Nickel silver, solder lugs
    Switching Contacts: Welded, gold alloy
    Insulation: Phenolic spacers, rigid PVC tubing through stack
    Screws: Steel, nickel-plated

  • Material 2

    Panels:
    Jack Panel: Thermoplastic
    Cable Support Bracket: 5/16" diameter black epoxy painted steel rod
    Screws (designation strip): Steel, black zinc-plated
    Screws (mounting jack): Steel, nickel plated
    Kwik-change Designation Strip: Extruded aluminum, black anodized
    Marking Strip: White plastic, matte finish
    Marking Strip Cover: Clear, extruded plastic

  • Resistance

    Contact: 30 mOhms maximum initial
    Insulation Resistance: 10,000 megaOhms maximum

  • Dielectric Withstanding Voltage

    500V at 60 Hz AC

  • Working Voltage

    140 VDC maximum

  • Current Rating

    100 milliamps

  • Number of Jacks

    48

  • Normalling

    Full Normals Out

  • Dimensions

    Height: 1 Rack Unit 1.75" (4.44cm)
    Depth: 8.8" (22.35cm)

About Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 1RU, Full Normals Out

How the Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 1RU, Full Normals Out stands out is through its high-quality construction and advanced features. This robust and reliable audio distribution tool is designed with a 2x24 point long frame, providing a high number of connection points for versatile audio routing.

The solder lug input/output feature ensures a secure and durable connection, enhancing the longevity and reliability of the device. This makes it an ideal choice for demanding environments such as live sound or recording setups.

One of the key features of this product is its Full Normals Out capability. This means it can output a normal signal, making it adaptable for a wide range of applications, from broadcasting to professional audio production.

The product also boasts a semi-enclosed metal chassis, providing an extra layer of protection for the jacks. This sturdy design not only safeguards the device but also allows for easy removal during installation or modification.

In addition, the inclusion of a cable tray further enhances the product's functionality, providing a neat and organized way to manage your cables.

In essence, the Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 1RU, Full Normals Out is a high-quality, durable, and reliable choice for any professional seeking a robust solution for their audio signal distribution needs.

Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 1RU, Full Normals Out Features

  • 2x24 point long frame for expansive audio connectivity
  • Solder lug I/O for secure, high-quality signal transmission
  • Full Normals Out for versatile audio routing applications
  • Sturdy semi-enclosed metal chassis for enhanced jack protection
  • 1RU size for space-efficient rack mounting
  • Integrated cable tray for efficient cable management

Key Features

  • Optimize audio connectivity with this Switchcraft 48-point patch bay for clear sound.
  • Durable steel frame ensures long-lasting performance in any professional audio setup.
  • Easily manage signal flow with full normals out, simplifying complex audio routings.
  • High-quality jacks provide reliable connectivity for pristine audio signal transfer.
  • Streamline your studio with integrated cable tray for organized cable management.
  • Achieve superior sound quality with low contact resistance in every connection.

What's in the box:

  • Switchcraft 48Point Long Frame Solder Lug with Cable Tray
  • Switchcraft Lifetime Limited Warranty
