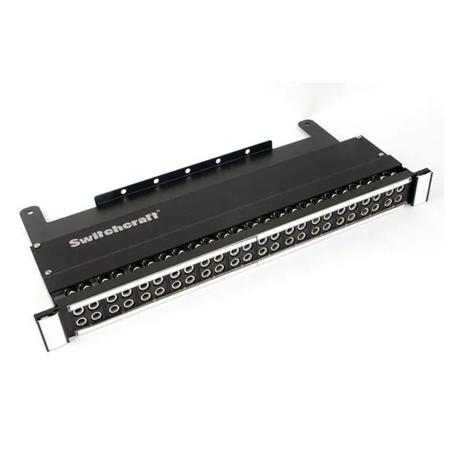

Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 2RU, Normals Strapped
See all Switchcraft items

Switchcraft 2x24 Point Long Frame With Solder Lug Input/Output and Cable Tray, 2RU, Normals Strapped

SKU: SWMT48K3NSX MFR: MT48K3NSX
Be the first to review this itemAsk a Question
$1,013.67
OR
$85/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Optimize your audio connectivity with this Switchcraft 48-point patch bay.
  • Achieve superior sound quality using gold alloy switching contacts for clear audio.
  • Durable steel frame ensures long-lasting performance in any professional setup.
  • Simplify cable management with the integrated cable tray for a tidy workspace.
  • High working voltage supports a wide range of audio equipment with ease.
  • Enjoy reliable connectivity with Switchcraft's lifetime limited warranty included.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 2RU, Normals Strapped Specifications

  • Material 1

    Jacks:
    Frame: Steel, nickel-plated
    Bushing: Brass, nickel-plated
    Springs: Nickel silver solder lugs
    Ground Terminal: Nickel silver, solder lugs
    Switching Contacts: Welded, gold alloy
    Insulation: Phenolic spacers, rigid PVC tubing through stack
    Screws: Steel, nickel-plated

  • Material 2

    Panels:
    Jack Panel: Thermoplastic
    Cable Support Bracket: 5/16" diameter black epoxy painted steel rod
    Screws (designation strip): Steel, black zinc-plated
    Screws (mounting jack): Steel, nickel plated
    Kwik-change Designation Strip: Extruded aluminum, black anodized
    Marking Strip: White plastic, matte finish
    Marking Strip Cover: Clear, extruded plastic

  • Resistance

    Contact: 30 mOhms maximum initial
    Insulation Resistance: 10,000 megaOhms maximum

  • Dielectric Withstanding Voltage

    500V at 60 Hz AC

  • Working Voltage

    140 VDC maximum

  • Current Rating

    100 milliamps

  • Number of Jacks

    48

  • Normalling

    Normals Strapped

  • Dimensions

    Height: 2 Rack Units 3.5" (8.89cm)
    Depth: 8.8" (22.35cm)

About Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 2RU, Normals Strapped

The Switchcraft 48Point Long Frame Solder Lug with Cable Tray, 2RU, Normals Strapped features the high quality of Long Frame patchbays plus a semi-enclosed metal chassis that protects the jacks and can easily be removed for installation and modification.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Optimize your audio connectivity with this Switchcraft 48-point patch bay.
  • Achieve superior sound quality using gold alloy switching contacts for clear audio.
  • Durable steel frame ensures long-lasting performance in any professional setup.
  • Simplify cable management with the integrated cable tray for a tidy workspace.
  • High working voltage supports a wide range of audio equipment with ease.
  • Enjoy reliable connectivity with Switchcraft's lifetime limited warranty included.

What's in the box:

  • Switchcraft 48Point Long Frame Solder Lug with Cable Tray
  • Switchcraft Lifetime Limited Warranty
