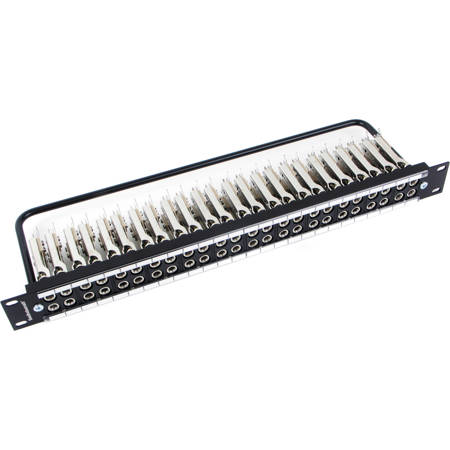

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug Input/Output and Cable Tie Bar, Full Normals Out

SKU: SWMT52FNX MFR: MT52FNX
Earn VIP Reward Points

Key Features

  • Experience superior audio connectivity with this Switchcraft 1/4" patch bay.
  • Ensure pristine sound quality with gold alloy welded contacts for clear audio signals.
  • Durable nickel-plated steel frame offers lasting reliability for your audio setup.
  • Full Normals Out configuration simplifies signal routing in complex audio systems.
  • Easily integrate into any studio rack with a standard 1.75" (1U) height design.
  • Optimize signal flow using this robust patch bay for professional audio applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Full Normals Out Specifications

  • Material

    Jacks:
    Frame: Stamped nickel-plated steel
    Bushing: Nickel-plated brass
    Tip, Ring and Shunt Springs: Nickel silver with welded contacts
    Assembly Screws: Nickel-plated steel
    Welded Contacts: Gold alloy
    Panel:
    Front Panel: Thermoplastic
    Frame: C.R.S. black epoxy painted
    Designation Strips: Black polycarbonate 94V-0
    Designation Strip Covers: Clear polycarbonate

  • Resistance

    Contact: 30 mOhms maximum initial
    Insulation Resistance: 10,000 megaOhms maximum

  • Dielectric Withstanding Voltage

    500V at 60 Hz AC

  • Working Voltage

    140 VDC maximum

  • Current Rating

    100 milliamps

  • Normalling

    Full Normals Out

  • Number of Positions

    52

  • Dimensions

    Height: 1 Rack Unit 1.75" (4.44cm)
    Depth: 5.3" (13.46cm)

About Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Full Normals Out

With the Switchcraft 2x26 Point 1/4" Long Frame Audio Patchbay, you're investing in a durable and high-quality solution for your audio signal distribution needs. Engineered to meet stringent military specifications, this patchbay exemplifies ruggedness and versatility, ensuring reliable performance even in the most demanding environments.

Crafted for professional audio setups, this patchbay boasts a robust 2x26 point configuration, allowing for the seamless connection of a multitude of audio sources. Its full normals out feature ensures straightforward signal routing, making it an indispensable tool for large-scale events and complex installations.

The patchbay's sturdy construction is complemented by heavy-duty 1/4" long frame jacks, designed to withstand the rigors of frequent plugging and unplugging. The pre-tinned and offset solder lugs facilitate easy and secure soldering, while the included cable tie bar aids in cable management, keeping your setup tidy and organized.

Customization is at the forefront with changeable designation strips, enabling clear labeling and quick identification of connections. This adaptability, paired with multiple normalling configurations, provides the flexibility needed to tailor your audio distribution to the specific requirements of live performances, theater productions, or recording studios.

In summary, the Switchcraft 2x26 Point 1/4" Long Frame Audio Patchbay is a professional-grade, sturdy, and reliable choice for audio professionals seeking a high-quality patching solution that can accommodate a large array of audio signals with ease.

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Full Normals Out Features

  • High-quality Switchcraft 2x26 Point 1/4" Long Frame Audio Patchbay for professional audio setups
  • Rugged design meeting military specifications for reliable performance
  • Features full normals out for straightforward signal routing
  • Includes heavy-duty 1/4" long frame jacks and offset solder lugs for secure connections
  • Comes with a cable tie bar for effective cable management
  • Provides changeable designation strips for easy identification of connections

Key Features

  • Experience superior audio connectivity with this Switchcraft 1/4" patch bay.
  • Ensure pristine sound quality with gold alloy welded contacts for clear audio signals.
  • Durable nickel-plated steel frame offers lasting reliability for your audio setup.
  • Full Normals Out configuration simplifies signal routing in complex audio systems.
  • Easily integrate into any studio rack with a standard 1.75" (1U) height design.
  • Optimize signal flow using this robust patch bay for professional audio applications.

What's in the box:

  • Switchcraft 2x26 Point 1/4 " Long Frame Audio with Solder Lug
  • Switchcraft Lifetime Limited Warranty
