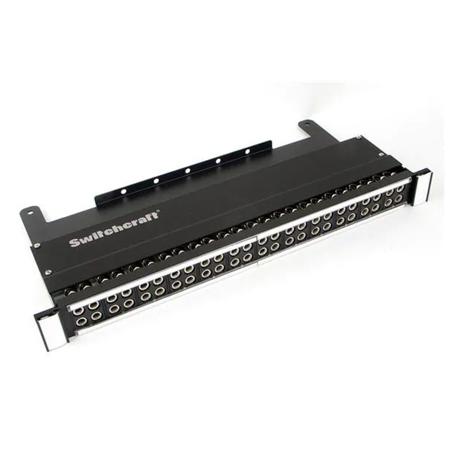

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug Input/Output and Cable Tie Bar, Normals Strapped

SKU: SWMT52NSX MFR: MT52NSX
Earn VIP Reward Points

Key Features

  • Achieve superior audio connectivity with this Switchcraft 2x26 point audio patch bay.
  • Optimize your studio's workflow using this 1/4" long frame audio stage box.
  • Ensure durable performance with nickel-plated steel and brass Switchcraft audio jacks.
  • Experience reliable signal transfer with gold alloy welded contacts for clear audio.
  • Easily manage your audio connections with the convenient cable tie bar included.
  • Enjoy a noise-free setup; insulation resistance at 10,000 megaOhms for pristine audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Normals Strapped Specifications

  • Material

    Jacks:
    Frame: Stamped nickel-plated steel
    Bushing: Nickel-plated brass
    Tip, Ring and Shunt Springs: Nickel silver with welded contacts
    Assembly Screws: Nickel-plated steel
    Welded Contacts: Gold alloy
    Panel:
    Front Panel: Thermoplastic
    Frame: C.R.S. black epoxy painted
    Designation Strips: Black polycarbonate 94V-0
    Designation Strip Covers: Clear polycarbonate

  • Resistance

    Contact: 30 mOhms maximum initial
    Insulation Resistance: 10,000 megaOhms maximum

  • Dielectric Withstanding Voltage

    500V at 60 Hz AC

  • Working Voltage

    140 VDC maximum

  • Current Rating

    100 milliamps

  • Normalling

    Normals Strapped

  • Number of Positions

    52

  • Dimensions

    Height: 1 Rack Unit 1.75" (4.44cm)
    Depth: 5.3" (13.46cm)

About Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Normals Strapped

After meticulous design and manufacturing, the Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug and Normals Strapped emerges as a professional-grade, high-quality audio solution. Crafted to meet stringent military specifications, this patchbay exemplifies rugged durability and versatile functionality, making it an ideal choice for demanding audio applications.

This robust audio patchbay features multiple normalling configurations, providing you with the flexibility to adapt to a variety of audio setups. The pre-tinned and offset solder lugs ensure reliable connections, while the cable tie bar offers a practical solution for organizing and securing your cables, enhancing your workspace's neatness and efficiency.

The product also boasts changeable designation strips, allowing for easy identification and management of your audio connections. The inclusion of heavy-duty 1/4" long frame jacks further underscores the product's commitment to delivering reliable, high-quality audio performance.

Whether you're connecting microphones, mixers, or amplifiers, the Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug and Normals Strapped stands as a sturdy, professional choice for all your audio needs. Trust in the quality of Switchcraft, a well-established brand in the audio industry, for your audio equipment requirements.

Switchcraft 2x26 Point 1/4" Long Frame Audio with Solder Lug, Normals Strapped Features

  • Professional-grade, high-quality Switchcraft 2x26 Point 1/4" Long Frame Audio Patchbay
  • Designed to meet stringent military specifications for maximum durability
  • Multiple normalling configurations for versatile audio setups
  • Pre-tinned and offset solder lugs for reliable audio connections
  • Cable tie bar for efficient cable organization and management
  • Heavy-duty 1/4" long frame jacks for superior audio performance

Key Features

  • Achieve superior audio connectivity with this Switchcraft 2x26 point audio patch bay.
  • Optimize your studio's workflow using this 1/4" long frame audio stage box.
  • Ensure durable performance with nickel-plated steel and brass Switchcraft audio jacks.
  • Experience reliable signal transfer with gold alloy welded contacts for clear audio.
  • Easily manage your audio connections with the convenient cable tie bar included.
  • Enjoy a noise-free setup; insulation resistance at 10,000 megaOhms for pristine audio.

What's in the box:

  • Switchcraft 2x26 Point 1/4 " Long Frame Audio with Solder Lug
  • Switchcraft Lifetime Limited Warranty
