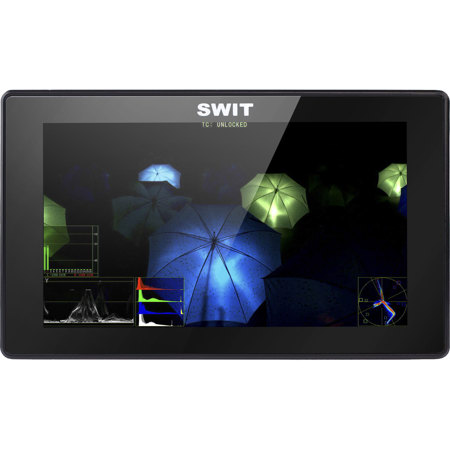

SWIT Electronics S-1053F 5.5" FHD Wavefoorm On-camera Top LCD Monitor with JVC SSL-50 Battery Plate, 1920x1080

5.5" Full HD LCD
Optical bonding
The S-1053F adopts a 5.5" LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920x1080, contrast 1000:1 and viewing angle is Horizontal: 160degree / Vertical: 160degree.

• 5.5" LCD, 1920x1080 full HD
• Optical bonding LCD panel
• All metal housing, thinner and robust
• 2K/3G/HD/SD-SDI input and loop out
• HDMI input and converted to SDI out
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (dual color)
• AFD, timecode, H/V delay, Zebra stripes
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• False color, R/G/B/Mono, 100% color bar
• Various DV battery plate install
• USB firmware upgrade

All Metal Housing
S-1053F adopts aluminum alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.

Input/output Interfaces
SDI & HDMI
• S-1053F monitor supports:
• 1x 2K/3G/HD/SD-SDI input
• 1x 2K/3G/HD/SD-SDI loop output
• 1x HDMI input (with lock)
• 1x HDMI to SDI output (share SDI loop port)
• 1x Micro USB (firmware upgrade)
• 1x 3.5mm analog audio output

Build-in HDMI to SDI Conversion
S-1053F supports build-in HDMI to SDI conversion; share the SDI loop output port. It's same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

Note

When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.

Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1053F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc.) to patterns and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color and translucence.

Embedded audio monitoring
Up to 16-ch meters with alert and select output
S-1053F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners and you can select to display only 2 channels, 8 channels and full 16 channels. Also scale markers, alert info and translucent of the audio meter pattern are selectable.

One-key Menu and Function Keys
S-1053F has a Revolve/Push Menu button, with one-button operation for menu system. On the top of the monitor there're 3 user definable function keys and under the menu system, press F3 at any time you can quit menu directly. The F1-F3 support the following functions: Input source switch, Max backlight, Waveform, Info display, Color temperature, Timecode, Zebra, Vector, Audio meters, Histogram, False color, AFD, H/V delay, R/G/B/Mono, scale markers, Color bar, Audio alert, Peaking focus assist, Aspect ratio, Scan mode, Zoom mode, Mute, Freeze frame, Flip.

USB Firmware Upgrade
The monitor provides a Micro USB port on the side, for firmware upgrade. Users can download the latest firmware file to a USB stick and insert into S-1053F monitor (via Micro USB OTG cable) to upgrade, without PC connection.

Various DV Plate Install
5.5mm lockable DC input
S-1053F supports DC 6.5-24V input via a 5.5mm lockable DC socket and can install SWIT S-7003 series battery plate to be powered by DV batteries:

HDMI Connector with Lock
The HDMI input port of S-1053F is lockable designed. SWIT provides a special HDMI cable with lock for S-1053F monitor and this HDMI connector can also work with normal standard HDMI cable.

Foldable Sun Hood
For outdoor using, the S-1053F provides a sun hood that is foldable designed and Snap-On installation to the monitor.
