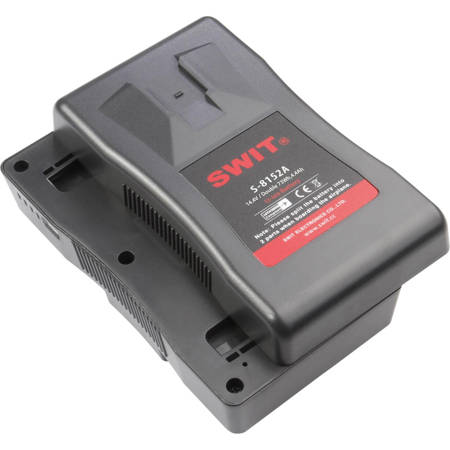

SWIT Electronics 73+73Wh Dividable Gold Mount Battery Pack

Large Capacity Battery, Complied with IATA.

Patented dividable battery design.
The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs.

Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8152A can be divided into 2 parts, and each part contains 73Wh capacity, not restricted by air transportation. And when using S-8152A, just assemble the 2 parts, you can get a Li-ion battery pack of 146Wh large capacity.

146Wh / 10.2Ah High Capacity
When assembled, the S-8152A consists of 16pcs 18650 battery cells, and reaches 146Wh / 10.2Ah high capacity. S-8152A can run approx 4.5 hours for normal 30W ENG cameras, and has no problem to fly with.

AntonBauer Gold Mount Connection
S-8152A is compatible with AntonBauer Gold mount type power system and we adopt the high quality connection bolts that ensure the reliable mounting.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8152A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 100W, 8A.

4-level LED Power Indicator
On the side of the battery, there re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
