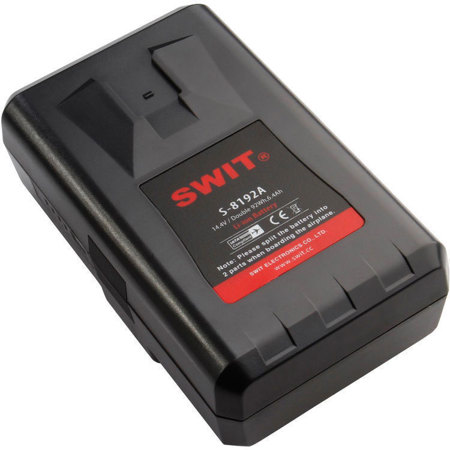

SWIT Electronics S-8192A 92+92Wh Dividable Gold Mount Li-ion Battery Pack, D-tap Output Socket

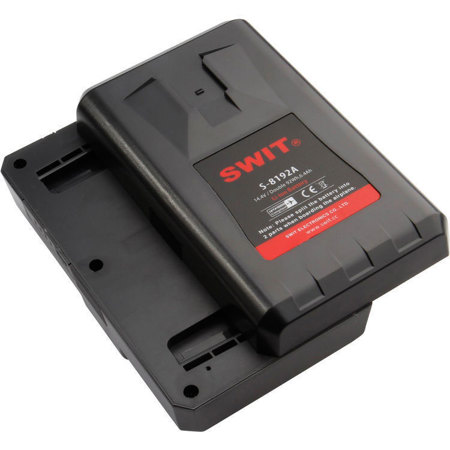

The S-8192A 92+92Wh Dividable Gold Mount Li-ion Battery Pack with D-tap Output Socket is a high-capacity, durable, and reliable power source designed for professional use. This powerful battery pack complies with IATA regulations, thanks to its patented dividable design. It can be split into two parts, each with a 92Wh capacity, making it safe and convenient for air transportation.

When assembled, the S-8192A transforms into a robust 184Wh / 12.8Ah battery pack, composed of 20 high-quality 18650 battery cells. This impressive capacity allows for approximately 6 hours of operation for standard 30W ENG cameras, making it an ideal companion for extended shoots.

The S-8192A is compatible with the AntonBauer Gold mount power system, ensuring a reliable and secure connection. It also features a built-in D-tap DC output socket on the top side, suitable for DC14.4V connections. This feature allows for the powering of additional equipment such as on-camera lights, monitors, and wireless transmitters. The maximum power output from the D-tap is a substantial 100W, 8A.

A convenient 4-level LED power indicator is located on the side of the battery, providing a quick and easy way to check the remaining capacity. The S-8192A uses high-quality Lithium cells known for their longevity, safety, and consistent performance. These cells also have a smooth discharging curve by voltage, allowing for accurate estimation of remaining running time.

The battery pack is housed in a strong and durable casing, designed to dissipate heat and enhance assembly intensity. The internal cell holder provides additional protection, separating the circuit board from the cells to ensure stable operation.

The S-8192A also features a multiple safety protection design, with an MCU that measures and records real-time data. This system will automatically cut off power when it detects over-voltage, under-voltage, over-current, high-temperature, or low-temperature conditions. The battery housing is made from high-impact ABS material, with a waist design and non-slip tread for secure handling.

Finally, the S-8192A includes a cell balance adjustment feature. This specially designed circuit optimizes any imbalanced cells after prolonged use, effectively extending the battery life. This professional, high-quality, and reliable battery pack is a powerful solution for all your electronic device power needs.
