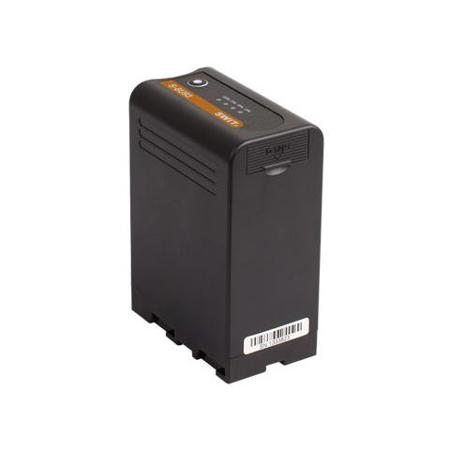

SWIT Electronics S-8U93 86Wh Battery Pack for Sony PMW-EX1/EX3/F3/100/200/300, PXW-X160/180/200, and the Latest PXW-FS7/FS5 Camcorders

SONY PMW/PXW Cameras Compatible - Similar Battery as SONY BP-U60 - Displays Remaining Power Info
S-8U93 is the replacement battery for Sony BP-U60, complete compatible with SONY Camcorder PMW-EX1/EX3/F3/100/200/300, PXW-X160/180/200, and the latest PXW-FS7/FS5. S-8U93 can exchange digital info with the camera and display remaining power info on the camera viewfinder..

• Li-ion battery pack of 14.4V nominal voltage
• Complete compatible with SONY EX1/3/F3/100/200
• Display remaining power info on camera viewfinder
• 86Wh / 6Ah capacity
• 4-level LED power indicator
• 14.4V D-tap DC output
• 5V/1A USB charging output
• Multiple circuit protections

Please Note: Regarding D-tap DC out on S-8U93, when using this battery for FS7, the SWIT S-7105 90° D-tap connector is needed since D-tap DC output was blocked by FS7 body.

86Wh / 6Ah High Capacity
With 14.4V nominal voltage, the S-8U93 has 86Wh / 6Ah capacity, and can run approx. 6 hours on SONY PMW-200 camcorder when LCD monitor is on.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of S-8U93 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket and get power simultaneously with camera. The Max power from D-tap is 50W, 3.5A.The D-tap socket can also be used as charging input, by SWIT portable charger S-3010B.

Build-in 5V/1A USB Socket
Use S-8U93 as Power Station to your cell phone! It's rather a fantastic function to have a USB socket on the DV battery! Connect your smart phone or pad to the USB socket, press the Check" button and then the S-8U93 starts to output 5V/1A power to charge your devices!!

4-level LED Power Indicator
The S-8U93 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The Check" button can also be used to trigger USB charging.

Easy Charging
The S-8U93 can be charged on SWIT Dual channel charger S-3602Uor SONY original charger BC-U1 single channel charger. It takes about (3 hours and 50 minutes) to charge from empty to 100%. And you can also use SWIT S-3010B Portable D-tap Charger for S-8U93. It will take 4 hours and 15 minutes to fully charge.

Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells they adopted. The high quality cells featured long life, durable, safety and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack. Moreover, the cells we're using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

Strong and Durable Housing
The S-8U93 housing is made of high-impact ABS material and the advanced plastic welding technical ensures the strong and durable structure.

Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected. Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling.

Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference and their specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
