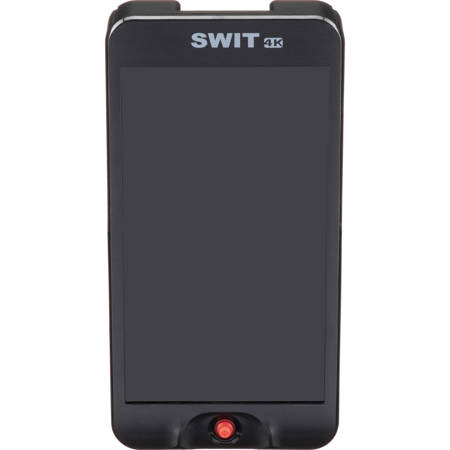

SWIT Electronics CM-55C 5.5" 4K-HDMI On-Camera Monitor, FHD Native Resolution
SKU: SWTCM55C
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About SWIT Electronics CM-55C Monitor
FEATURED REVIEWS
Great Bang for the Buck!
Pretty impressed! It's surprisingly full featured for such a cheap monitor. Not the "best" screen (I wouldn't do color grading on it) but it's definitely sharp enough for critical focus and large enough for framing. Few things to share. 1) It has an auto flip feature! 2) The mounting arm comes with a cold shoe attachment. I like using my cameras hot shoe for a wireless microphone. I also put my camera in a SmallRig cage to protect it. I suggest, with any larger camera attachments, that you...
View full Review
5.5-inch Full HD LCD
IPS panel with LED backlight
The CM-55C adopts a 5.5-inch LCD panel with LED backlight, The native resolution is Full HD 1920 x1080, contrast 1000:1, brightness 450nit, and viewing angle is Horizontal/Vertical: 178 Degree
Input/Output Interfaces
4K-HDMI
CM-55C monitor supports:
• HDMI 1.4 (4K30p) input x 1
• 3.5mm audio output x 1
• SD card input for 3DLUT upload and Firmware upgrade
Single Joystick Operation
The monitor operation can be easily realized by only one Joystick:
• Up: Quick Zoom-in mode
• Down: Cancel / Delete current scene
• Left/Right: Preset Scenes switching
• Long Left: Enter Menu system
• Long Right: Add a new scene
• Press down: Edit tools in current scene / Confirm settings
Quick Zoom-in and Pan
Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.
Scene Layout Edit and Switch
Different from the traditional multi-buttons monitors, the CM-55C adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.
3DLUT Log to Rec709
User LUT cube import
CM-55C provides more than 20 De-log 3DLUTs, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.
User 3DLUT upload
User creative 3DLUT cube or calibration 3DLUT cube can be uploaded to CM-55C by SD card. Max 16 user 3DLUT can be restored.
Professional Video Analysis
• Waveform, Vector scope, Histogram
• Aspect rations, safe area (action & title)
• Crosshatch 3x3 to 10x10 Selectable
• R/G/B 3-color Foues assist
• Zebra stripes with level adjustment
• 2-ch HDMI embedded audio meters
Super False Color Exposure Assist
Besides normal spectrum false color, the CM-55C supports more powerful Super False Color mode, including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get a correct exposure easily.
Power Input
CM-55C has a built-in battery slot, supports both SONY NP-F and Canon LP-E6 batteries. The power consumption is only 5.5W. The monitor also supports Micro USB power input. You can use smart phone charger or power bank to power the monitor. (At least 5V/1.5A)
Dummy Battery Power Out
When the monitor is powered by battery, the BATT OUT socket can output battery DC power to cameras by using the dummy battery adaptors.
SWIT Electronics CM-55C Monitor Features
- 5.5-inch IPS LCD, 1920 x1080 FHD
- HDMI 1.4 (4K30p) input
- 2x 4x Quick zoom-in and Pan
- Focus assist and precision adjust
- Waveform / Vector / Histogram
- Build-in 20+ De-log 3DLUTs
- User DIT 3DLUT import by SD card
- 2-ch HDMI audio meters display
- Super False color, Zebra stripes, Anamorphic
- Single joystick quick operation
- Battery slot for both NP-F & LP-E6
- DC out with dummy battery adaptor
