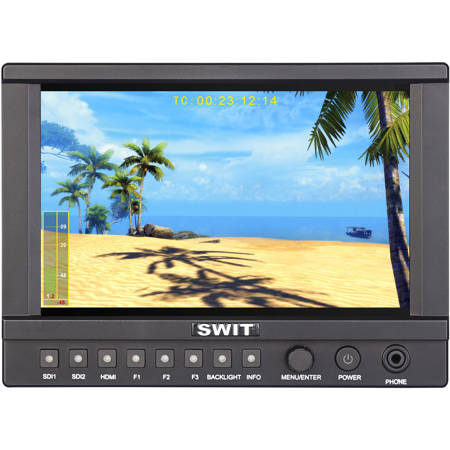

SWIT Electronics CM-S73H 7" Full HD 300 Nits Super Bright LCD Monitor without Battery Plate, 1920x1200

7-inch 3000nit Super Bright

PQ/HLG/S-log3 HDR capable
The CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight and support PQ, HLG, S-log3 HDR display. The native resolution is Full HD 1920x1200, contrast 1200:1.

3DLUT Log to Rec709

User LUT cube import
CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output
CM-S73H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners and you can select to display only 2 channels, 8 channels and full 16 channels. Also scale markers, alert info and translucent of the audio meter pattern are selectable.

On-screen Tally
CM-S73H supports on-screen TALLY display and the TALLY control signal inputs via GPI (RS485) port on the rear panel of the monitor.

USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into CM-S73H monitor to upgrade, without PC connection.

Audio Meter Level

With alert info and select any 2 channels to output
Support SDI & HDMI embedded audio meters and analog audio meters display and 3G/HD-SDI displays 16-ch, SD-SD displays 8-ch, HDMI and analog audio displays 2-ch. The audio meter is green and will turn yellow when exceeds -20dB and turn red when exceeds -9dB. You can also select any 2 channels audio to output via 3.5mm socket or speakers.

The audio meters support audio abnormal alert info display, for example if the channel has no audio signal, the audio meter position will display "UNLOCKED" and if the channel has audio signal but no volume, it will display "MUTE". The audio meters can be selected to display only 2 channels or only 8 channels and support alert info on/off switch, markers on/off switch and display position can be selected from 4 corners, also the translucence of the pattern can be adjusted.

GPI Pin Definition
The RJ45 (RS485) port on the rear panel supports UMD control and GPI functions setting and control. There're 4 GPI pins and can be assign the following functions, by shorting with GND pin to enable the functions.
