SWIT Electronics CM-S75F 7" 3GSDI & 4K HDMI 16:9 3000nit Super Bright HDR LCD Monitor, 1920x1200

7-inch 3000nit Super Bright

Sunlight visible, PQ/HLG HDR
The CM-S75F adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, visible under sunlight, and built-in PQ, HLG HDR.

The native resolution is Full HD 1920 x1200, contrast 1200:1

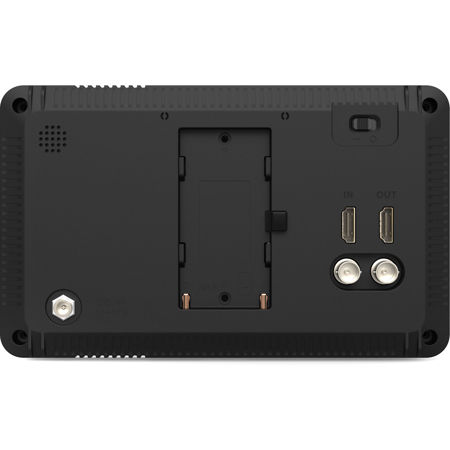

Input/Output Interfaces

3G-SDI, 4K-HDMI

CM-S75F monitor supports:
• 3G/HD-SDI input x 1
• 3G/HD-SDI loop output x 1
• HDMI 1.4 (4K30p) input x 1
• HDMI 1.4 (4K30p) loop output x 1
• 3.5mm embedded audio output
• SD card input for 3DLUT upload and Firmware upgrade

Single Joystick Operation

The monitor operation can be easily realized by only one Joystick:
• Up: Quick Zoom-in mode
• Down: Quick adjust backlight
• Long Down: Delete current scene
• Left/Right: Preset Scenes switching
• Long Left: Enter Menu system
• Long Right: Add a new scene
• Press down: Edit tools shortcuts / Confirm settings

Quick Zoom-in and Pan
Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.

Anamorphic De-Squeeze

Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
• 16x9
• 4x3
• x1.3 Anamorphic De-Squeeze
• x2.0 Anamorphic De-Squeeze
• x2.0 MAG Anamorphic De-Squeeze

Scene Layout Edit and Switch
Different from the traditional multi-buttons monitors, the CM-S75F adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.

Built-in De-log 3DLUT
CM-S75F has built-in HLG, PQ3000, PQ10000 HDR 3DLUTs and 30 kinds of Rec709 De-log 3DLUT, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.

User 3DLUT upload
User 3DLUT cube or calibration 3DLUT cube can be uploaded to the monitor by SD card. Max 16 user 3DLUTs can be restored.

Super False Color Exposure Assist
Besides normal spectrum false color, the CM-S75F supports more powerful Super False Color mode, including under-exposure / Over-exposure / 18 degree gray / Skin tone indications, to help you to get a correct exposure easily.

Power Input
CM-S75F has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.

The Max power consumption is 16.2W with full 3000nit backlight.
