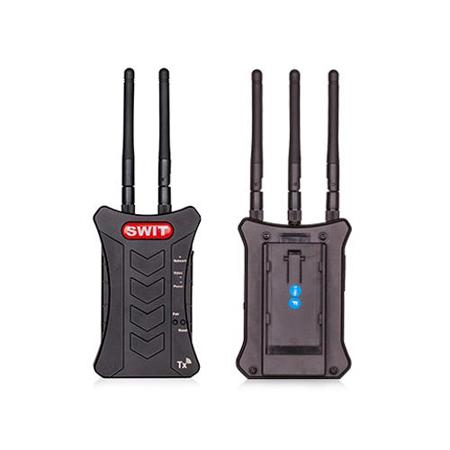

SWIT Electronics CW-H150 HDMI 150m Wireless Transmission Kit without Battery Plate, Includes Transmitter and Receiver

WHDI wireless transmission

HDMI 150 meters (LOS)
CW-H150 wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports uncompressed HDMI (Max 1080p60) to transmit 150 meters (Line-of-Sight) distance and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Input and Output
The Transmitter (Tx) has 2 omni antennas, supports:
• 1x HDMI 1.3 input
• 1x 7-17V DC input

The Receiver (Rx) has 3 omni antennas, supports:
• 1x HDMI 1.3 output
• 1x 7-17V DC input

HDMI formats:
• 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50

150meters Transmission

HDMI non-compressed, <=1ms latency
In Line-of-Sight, CW-H150 supports non-compressed HDMI 150 meters (500 feet) transmission, with less than 1 millisecond latency.

Embedded Audio Transmission
CW-H150 supports HDMI embedded audio (CH1&2) transmission.

5.1-5.9GHz Frequency

DFS comply
CW-H150 wireless system works at 5.1-5.9GHz License-free frequency and support DFS (Dynamic Frequency Switch). The transmitter and receiver are paired to work. Support 3-4 pairs wireless channels to work together in one location. The wireless output power is less than 63mW, which will not do harm to human bodies.

Multicast Setting
Users can Pair up to 4 Receivers with 1 Transmitter, to enable 1 Transmitter to multi Receivers multicast mode.

Power Supply and Set-up
Both Transmitter and Receiver are compact designed, provide 7-17V 2-pin lockable DC input.
