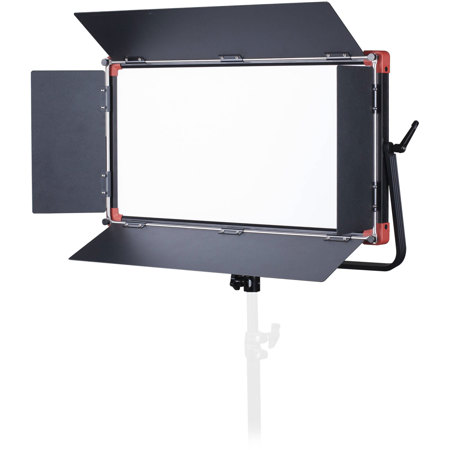

SWIT Electronics PL-E90 Portable Bi-Color SMD Panel LED 3-Light Kit with Stands and Case, Gold Mount Battery Plates

480pcs Edge Mounted LEDs

Super thin, area light, soft and glareless
PL-E90 is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame and with SWIT unique 90 deg. light guide technology, PL-E90 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

• 480pcs edge mounted SMD-LEDs
• Unique 90 deg. light guide technology
• 90W power, 2200Lux at 1meter
• 0-100% flick-free dimming
• 70 deg. effective wide beam angle
• 2700K-6500K continuously adjustable
• Super high CRI Ra 98, TLCI 99
• LCD display color, dimmer and battery info
• DC 11-36V wide input voltage
• Power by Gold mount battery
• Strong all-metal housing with U-stand

Laser Dots 90 deg. Light Guide

High efficiency and super bright
The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there's reflection board, there's still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots and output 90 deg. to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

2200 Lux at 1 meter

0-100% flick-free dimming
PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70 deg. , bounded by 50% decline. PL-E90 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-color Temperature

2700K-6500K continuously adjustable
PL-E90 alternated with 2700K and 6500K LEDs and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Reveal Ability

CRI Ra 98; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while PL-E90 offers the super high CRI at 98 and TLCI at 99 and will not lost the object original colors.

LCD Screen Display

Dimmer / color temperature value, battery info
The rear LCD screen can display the current dimmer percentage, color temperature value and remaining battery indications.

Quick Adjust Mode

By pressing the adjusting knob
PL-E90 supports quick adjusting brightness and color temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

11-36V Wide Input Voltage

By Gold mount battery or 4-pin XLR
PL-E90 supports 11-36V wide range voltage input, with 4-pin XLR DC socket and equipped with Gold mount plate to power by batteries.
