SWIT Electronics S-1071F 7" HD-SDI EFP Field LCD Monitor

S-1071F is a portable high resolution on-camera monitor, with a 7-inch LCD panel, 1024XRGBX600 resolution, H/V: 160/160 viewing angle and 1:900 contrast, dual TALLY light. S-1071F integrates wide range of professional features, including waveform(Y, Cb, Cr, R, G, B), full waveform, vector scope, RGB histogram, red/blue switchable peaking focus assist, 16-ch HDSDI audio meter, time code, false color, blue only, zebra, rotate and flip, internal color bar, etc.

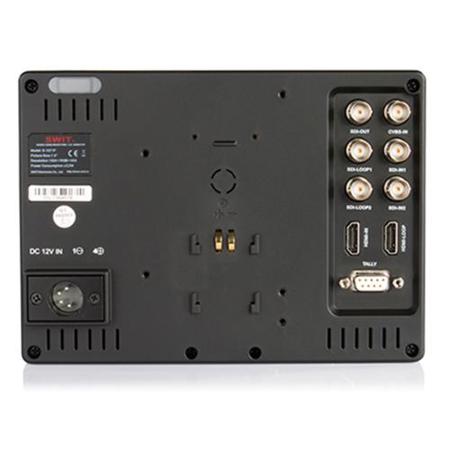

S-1071F accepts 1 Composite video input, 2 HD/SD-SDI input and loop through output, 1 HDMI input and loop through output, 1 HDMI converted to HD/SD-SDI output and one 3.5mm earphone output socket. S-1071F has a 4-pin XLR 6.5-17V DC connector and has V-mount, Gold-mount, quick release DV battery mount choice.
