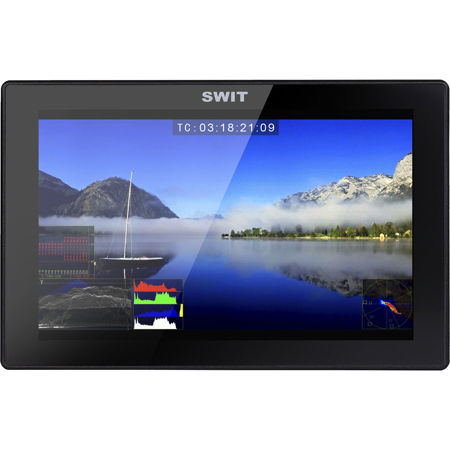

SWIT Electronics S-1073F 7" Full HD Waveform On-Camera Top LED Monitor with S-7006F Sony L Series Battery Plate

The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920x1200, contrast 1000:1 and viewing angle is Horizontal: 160deg. / Vertical: 160deg.

• 7" non-glaring LCD, 1920x1200 FHD
• Optical bonding LCD panel
• All metal housing, thinner and robust
• 2K/3G/HD/SD-SDI input and loop out
• HDMI input, loop out, converted to SDI out
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (dual color)
• AFD, timecode, H/V delay, Zebra stripes
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• False color, R/G/B/Mono, 100% color bar
• GPI control and soft Tally display
• USB firmware upgrade

All Metal Housing
S-1073F adopts aluminum alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.

Input/Output Interfaces

SDI & HDMI
• S-1073F monitor supports:
• 2K/3G/HD/SD-SDI input x 2
• 2K/3G/HD/SD-SDI loop output x 1
• HDMI 1.3 input x 1
• HDMI 1.3 loop output x 1
• HDMI to SDI output x 1 (share SDI loop port)
• 3.5mm analog audio input x 1
• 3.5mm analog audio output x 1
• GPI/TALLY input x 1
• USB x 1 (firmware upgrade)

Build-in HDMI to SDI Conversion
S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It's same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

Note:
When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram
S-1073F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color and translucence.

Embedded audio monitoring

Up to 16-ch meters with alert and select output
S-1073F supports SDI-16ch, HDMI-8ch and analog audio 2-ch audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners and you can select to display only 2 channels, 8 channels and full 16 channels. Also scale markers, alert info and translucent of the audio meter pattern are selectable.

GPI and Soft TALLY
S-1073F supports GPI control input via rear RJ45(RS485) port. Users can define the functions for each GPI pins, including Red/Green/Yellow Tally signals. The monitor screen will display soft Tally signal, which flashes as Red/Green/Yellow according to the GPI settings.

One-key Menu and Function Keys
S-1073F has a Revolve/Push Menu button, with one-button operation for menu system. On the top of the monitor there're 4 user definable function keys and you can quickly set the functions by long-press the function keys. The F1-F4 keys support the following functions: Audio meters, Histogram, False color, AFD, H/V delay, R/G/B/Mono, scale markers, Color bar, UMD, Audio alert, Max backlight, Peaking focus assist, Aspect ratio, Scan mode, Zoom mode, Mute, Freeze frame, Flip, Waveform, Color temperature, Timecode, Zebra, Vector scope.

USB Firmware Upgrade
The monitor provides a standard USB port on the side, for firmware upgrade. Users can download the latest firmware file to a USB stick and insert into S-1073F monitor to upgrade, without PC connection.

Foldable Sun Hood
For outdoor using, the S-1073F provides a sun hood that is foldable designed and snap-on installation to the monitor.
