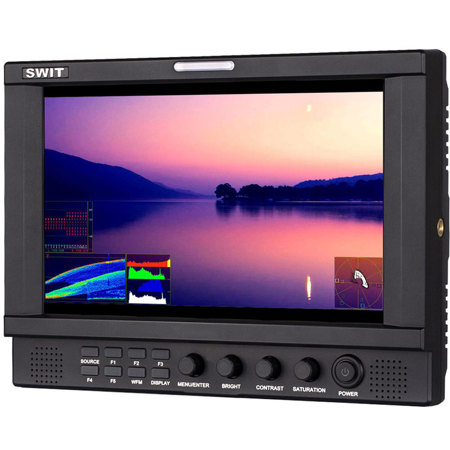

SWIT Electronics S-1093F 9" Full HD Waveform On-Camera Top LED Monitor with Gold Mount Battery Plate, 16-CH Embedded Audio Meter

This is SWIT first 9-inch FHD waveform monitor, S-1093F, with 1920x1200 resolution IPS LCD panel, 2K/3G/HD/SD-SDI and HDMI input, provides broadcast technical reference patterns- waveform, vector scope, histogram and up to 16-ch audio meters with alert, select any 2-ch audio to output. Moreover, the peaking focus assist, false color, R/G/B/Mono, H/V delay, UMD, AFD, scale markers are useful functions for broadcast field and studio monitoring.

• 9" IPS LCD, 1920x1200, H/V 170deg.viewing
• Build-in LCD protective glass
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• AFD, H/V delay, R/G/B/Mono, False color
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• Front / Rear TALLY light and GPI control
• USB firmware upgrade

LCD Protective Glass
The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

Input/Output Interfaces

S-1093F monitor supports:
• 2K/3G/HD/SD-SDI input x 2
• 2K/3G/HD/SD-SDI loop output x 2
• HDMI input x 1
• HDMI loop output x 1
• CVBS input x 1
• CVBS loop output x 1
• 3.5mm analog audio input x 1
• 3.5mm analog audio output x 1

Video Analysis Assistant Pattern
S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color and translucence.

Embedded Audio Monitoring
S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners and you can select to display only 2 channels, 8 channels and full 16 channels. Also scale markers, alert info and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display
S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into S-1093F monitor to upgrade, without PC connection.

3-color TALLY Light

RJ45 (RS485) input signal
There are front and rear TALLY lights of Red, Green and Yellow colors and users can define the pins of RJ45 port to control the TALLY lights.

Sun Hood
For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads or directly by Velcro tapes. The sun hood is provided in the monitor package.
