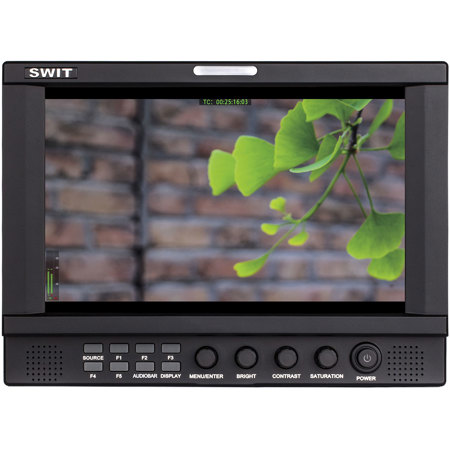

SWIT Electronics S-1093H 9" FHD 3G-SDI & HDMI IPS LED Monitor without Battery Plate

SKU: SWTS1093H MFR: S-1093H
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 9" Full HD IPS LED video monitor.
  • Enjoy versatile connectivity with 3G-SDI & HDMI inputs for various devices.
  • The 1920x1200 resolution ensures sharp visuals for accurate video monitoring.
  • Achieve optimal viewing with a wide 170° horizontal and vertical viewing angle.
  • This on-camera video monitor includes a sun hood for outdoor shooting ease.
  • Lightweight at 33.86 oz, this monitor is perfect for field and studio work.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SWIT Electronics S-1093H Specifications

  • Size

    9"

  • Display area

    191.52x119.70mm

  • Resolution

    1920x1200

  • Aspect ratio

    16:9 (4:3 adjustable)

  • Brightness

    450cd/sq. m

  • Contrast

    800:1

  • Color

    16.77 million colors

  • Viewing angle

    Horizontal: 170deg., Vertical: 170deg.

  • Input

    2x BNC - 2K/3G/HD/SD-SDI input
    1x BNC - Composite input
    1x HDMI - HDMI input
    1x 3.5mm - Analog audio input

  • Output

    2x BNC - 2K/3G/HD/SD-SDI loop output
    1x BNC - Composite loop output
    1x HDMI - HDMI loop output
    1x 3.5mm - SDI, HDMI, analog audio output

  • Video Format

    CVBS: NTSC/PAL
    SDI:

    SMPTE 2048-2 - 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    2048x1080i (60 / 59.94 / 50)
    SMPTE-425M - 1080p (60 / 59.94 / 50)
    SMPTE-274M - 1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211 - 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M - 720p (60 / 59.94 / 50)
    SMPTE-125M - 480i (59.94)
    ITU-R BT.656 - 576i (50)

  • Video Format (Cont.)

    HDMI: 480i/ 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)

  • Working voltage

    DC / battery 6.5V-24V

  • Power consumption

    <=18W

  • Working temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Working humidity

    10%-90%

  • Storage temperature

    -15 to 60 deg. C (5 to 140 deg. F)

  • Storage humidity

    10%-90%

  • Dimensions

    241 x 178 x 52mm (9.49 x 7.01 x 2.05")

  • Weight

    960g (33.86 oz) (Main body)

About SWIT Electronics S-1093H

Discover the S-1093H 9" FHD 3G-SDI & HDMI IPS LED Monitor, a high-quality display solution designed for professional use. This monitor features a 9-inch IPS (In-Plane Switching) LCD panel, offering Full HD 1920x1200 resolution for crystal clear images. The LED backlight enhances color reproduction, while the impressive 800:1 contrast ratio ensures deep blacks and bright whites. With a viewing angle of 170 degrees both horizontally and vertically, you can enjoy consistent image quality from any perspective.

The S-1093H monitor is designed with durability in mind, featuring an LCD protective glass overlay that safeguards the screen from scratches or damage. This feature ensures the longevity of your monitor, keeping it in top condition for longer.

This monitor supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, complete with marks and audio abnormal alert info. The audio meter pattern position can be customized to one of four corners, and the scale markers, alert info, and translucence of the audio meter pattern are all adjustable to suit your preferences.

The S-1093H also supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with a wide range of TSL address selection and a maximum of 8 letters displayed. The UMD/TALLY signal inputs via an RJ45(RS485) port located on the rear panel of the monitor.

Stay updated with the latest features through the USB Firmware Upgrade option. Simply download the latest firmware file to a USB stick and insert it directly into the S-1093H monitor for an easy upgrade without the need for a PC connection.

The monitor also features front and rear TALLY lights in Red, Green, and Yellow colors, with customizable pin controls via the RJ45 port. For outdoor use, a sun hood can be easily installed to shield the screen from sunlight.

The S-1093H monitor also offers an audio meter level with abnormal alert info, supporting 2-ch SDI & HDMI embedded audio meters and analog audio meters display. The audio meter changes color based on the audio level, providing a visual alert for audio abnormalities.

Finally, the RJ45(RS485) port on the rear panel supports UMD control and GPI functions setting and control, with 4 GPI pins that can be assigned various functions by shorting with the GND pin. Experience the versatility and professional quality of the S-1093H 9" FHD 3G-SDI & HDMI IPS LED Monitor.

SWIT Electronics S-1093H Features

  • 9" IPS LCD, 1920x1200, H/V 170deg.viewing
  • Build-in LCD protective glass
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 2-ch Embedded audio meters with alert
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Front / Rear TALLY light and GPI control
  • USB firmware upgrade

Key Features

  • Experience superior clarity with this 9" Full HD IPS LED video monitor.
  • Enjoy versatile connectivity with 3G-SDI & HDMI inputs for various devices.
  • The 1920x1200 resolution ensures sharp visuals for accurate video monitoring.
  • Achieve optimal viewing with a wide 170° horizontal and vertical viewing angle.
  • This on-camera video monitor includes a sun hood for outdoor shooting ease.
  • Lightweight at 33.86 oz, this monitor is perfect for field and studio work.

What's in the box:

  • SWIT Electronics S-1093H 9 " Full HD IPS LED Monitor without Battery Plate
  • Sun Hood
  • Cold Shoe/Screw Articulating Arm Trestle
  • 4-Pin XLR Power Adaptor
  • SWIT Electronics 2 Year Warranty
