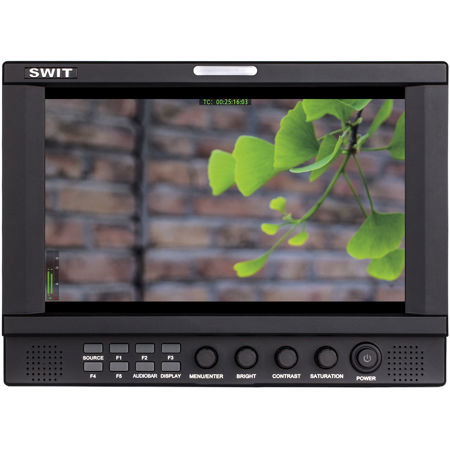

SWIT Electronics S-1093H 9" Full HD Waveform On-Camera Top LED Monitor with Panasonic VW-VBG6 Battery Plate, 2-CH Embedded Audio Meter

This is SWIT first 9-inch FHD waveform monitor, S-1093H, with 1920x1200 resolution IPS LCD panel, 2K/3G/HD/SD-SDI and HDMI input, provides broadcast technical reference patterns- waveform, vector scope, histogram and up to 16-ch audio meters with alert, select any 2-ch audio to output. Moreover, the peaking focus assist, false color, R/G/B/Mono, H/V delay, UMD, AFD, scale markers are useful functions for broadcast field and studio monitoring.

• 9" IPS LCD, 1920x1200, H/V 170deg.viewing
• Build-in LCD protective glass
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 2-ch Embedded audio meters with alert
• AFD, H/V delay, R/G/B/Mono, False color
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• Front / Rear TALLY light and GPI control
• V-mount, Gold mount or snap-on DV mount
• USB firmware upgrade

LCD Protective Glass
The LCD of S-1093H is overlaid with a glass, protects the screen against scratch or broken.

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio
S-1093H monitor supports:

• 2K/3G/HD/SD-SDI input x 2
• 2K/3G/HD/SD-SDI loop output x 2
• HDMI input x 1
• HDMI loop output x 1
• CVBS input x 1
• CVBS loop output x 1
• 3.5mm analog audio input x 1
• 3.5mm analog audio output x 1

Embedded audio monitoring

2-ch meters with alert
S-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners and the scale markers, alert info and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display
S-1093H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

3-color TALLY Light

RJ45 (RS485) input signal
There are front and rear TALLY lights of Red, Green and Yellow colors and users can define the pins of RJ45 port to control the TALLY lights.

Sun Hood
For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads or directly by Velcro tapes. The sun hood is provided in the monitor package.
