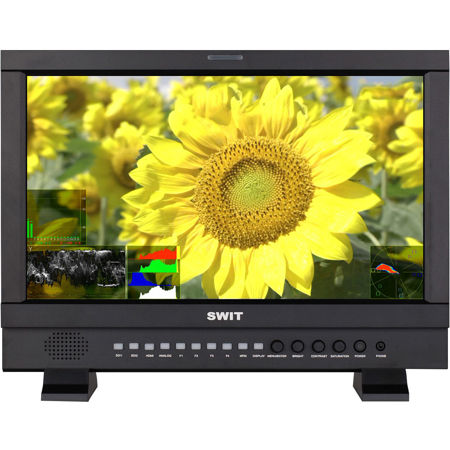

SWIT Electronics S-1173F 17.3" Full HD Waveform Studio IPS LED Monitor without Battery Plate
SKU: SWTS1173F MFR: S-1173F
$2,200.00
$2,300.00
Save: $100 (4%)OR
Key Features
- Experience superior clarity with the 17.3" Full HD studio monitor's 1920x1080 resolution.
- Achieve accurate color representation on your video projects with this IPS LED monitor.
- Versatile connectivity: Accepts 2K/3G/HD/SD-SDI, HDMI, CVBS, Y/Pb/Pr, VGA, and audio inputs.
- Ensure precise monitoring with waveform, vector scope, and histogram display functions.
- Rack mountable design makes this 17.3" monitor ideal for studio and on-location use.
- Loop through capability for SDI & HDMI signals streamlines your video production workflow.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$289.99
3 Year
$449.99
4 Year
$549.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About SWIT Electronics S-1173F
Enhance your studio setup with the S-1173F 17.3" Full HD Waveform Studio IPS LED Monitor. This professional-grade monitor features a 17.3-inch AH-IPS LCD panel with Full HD 1920x1080 resolution and LED backlighting, offering a 700:1 contrast ratio for precise color reproduction. With a wide viewing angle of 160 degrees both horizontally and vertically, you can enjoy clear, vibrant images from any perspective.
The S-1173F monitor is equipped with a Video Analysis Assistant Pattern, including Waveform, Vector scope, and Histogram, to convert digital video quality information such as Luma, Color, and Saturation into easily readable patterns. These patterns can be individually switched on or off, and their display position, size, color, and translucence can be adjusted to your preference.
For audio monitoring, the S-1173F supports SDI-16ch and HDMI-8ch embedded audio meters display, complete with marks and audio abnormal alert information. You can select any 2 channels audio to output via a 3.5mm socket or speakers, and the audio meter pattern position can be customized.
The monitor also supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and a maximum of 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.
The S-1173F monitor offers 17x17x17 3DLUT accurate color calibration, allowing you to use a professional color analyzer and 3DLUT calibration software to measure and generate a 3DLUT cube file to upload to the monitor by USB stick. The monitor also has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
The S-1173F monitor is designed for easy firmware upgrades via a standard USB port, eliminating the need for a PC connection. It also features a 3-color TALLY light with RS485 input signal, and a GPI interface and control via the RJ45 (RS485) port on the rear panel.
Whether you're working on video production, broadcasting, or professional photography, the S-1173F 17.3" Full HD Waveform Studio IPS LED Monitor is a versatile and reliable tool that delivers exceptional performance and accuracy.
SWIT Electronics S-1173F Features
- 17.3" LCD Panel, 1920x1080 resolution
- 2K/3G/HD/SD-SDI (x2), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- 19inch Rack install, 7U height
- USB firmware upgrade
