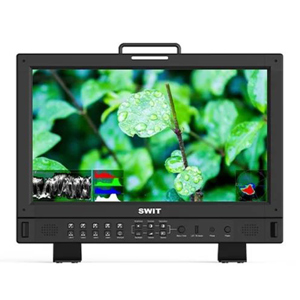

SWIT Electronics S-1173H 17.3" Full HD 3G-SDI & HDMI Studio IPS LED Monitor without Battery Plate

AH-IPS LCD panel, LED backlight
S-1173H adopts a 17.3" IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160deg. / Vertical: 160deg..

Digital Audio De-embed

2-ch Audio meters display+ Audio Alarm under SDI/HDMI
S-1173H supports 2-ch audio meters under SDI and HDMI input. The audio meter is green and will turn yellow when exceeds -20dB and turn red when exceeds -9dB. The ch-1 and ch-2 de-embedded audio can be output via 3.5mm headphone socket and speaker. If the audio value is too low or no embedded audio, it will display "MUTE" or "UNLOCKED" in the audio bar.

UMD and Text-Tally Display - TSL 3.1/4.0 Protocol
S-1173H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

USB Firmware Upgrade
S-1173H provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into S-1173H monitor to upgrade, without PC connection.

3-color TALLY Light

RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.

Audio Meter Level

With alert info and select any 2 channels to output
Support 2-ch I embedded audio meters display under SDI & HDMI. The audio meter is green and will turn yellow when exceeds -20dB and turn red when exceeds -9dB. You can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meters support audio abnormal alert info display, for example if the channel has no audio signal, the audio meter position will display "UNLOCKED" and if the channel has audio signal but no volume, it will display "MUTE". The audio meters support alert info on/off switch, markers on/off switch and display position can be selected from 4 corners and also the translucence of the pattern can be adjusted.

GPI Interface and Control

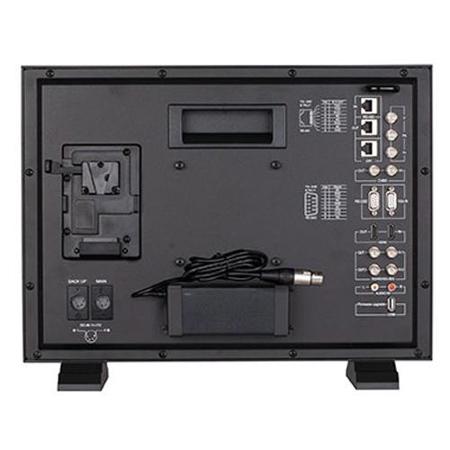

The RJ45 (RS485) port on the rear panel supports UMD control and GPI functions setting and control. There're 6 GPI pins and can be assign the following functions, by shorting with GND pin to enable the functions.
