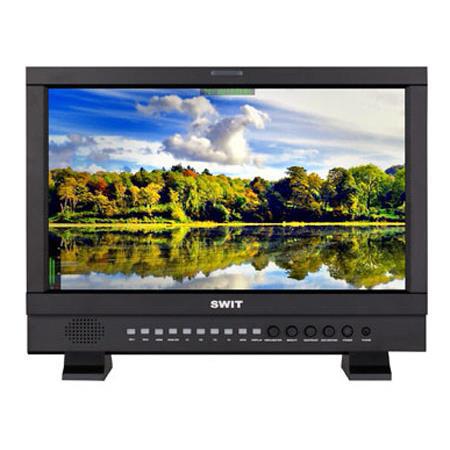

SWIT Electronics S-1173H 17.3" Full HD 3GSDI and HDMI Studio LED Monitor with 19" 7RU Rack Install and S-7004A Gold Mount Battery Plate, 2-CH Embedded Audio Meter

17.3-inch Full HD Studio LCD Monitor (AH-IPS LCD panel, LED backlight)
S-1173H adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160degree / Vertical: 160degree.

• 17.3-inch LCD Panel, 19201080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 2-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• Gold mount battery plate
• 19-inch Rack install, 7U height
• USB firmware upgrade

Multi-format Input/Output
S-1173H supports:
• 2K/3G/HD/SD-SDI input x2
• 2K/3G/HD/SD-SDI loop x2
• HDMI input x1
• HDMI loop x1
• YUV input x1
• VGA input x1
• CVBS input x1
• CVBS loop x1
• RS485 UMD input x1
• RS485 UMD output x1
• RS232C UMD input x1
• RS485 GPI input x1
• L/R analog audio input x1

Digital Audio De-embed
2-ch Audio meters display+ Audio Alarm under SDI/HDMI
S-1173H supports 2-ch audio meters under SDI and HDMI input. The audio meter is green and will turn yellow when exceeds -20dBand turn red when exceeds -9dB. The ch-1 and ch-2 de-embedded audio can be output via 3.5mm headphone socket and speaker. If the audio value is too low or no embedded audio, it will display MUTE or UNLOCKED in the audio bar.

UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
S-1173H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

USB Firmware Upgrade
S-1173H provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into S-1173H monitor to upgrade, without PC connection.

Multiple Power Sources
AC adaptor / Gold mount
S-1173H provides a 4-pin XLR socket of DC 11-17V power input and Gold mount plate for outdoor using.

3-color TALLY Light
RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
