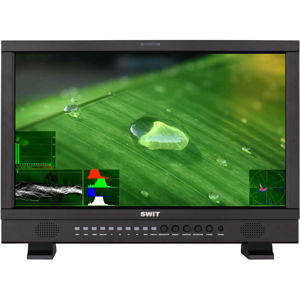

SWIT Electronics S-1223F 21.5" Full HD Waveform Studio LED Monitor with S-7004S V Mount Battery Plate, 16-CH Embedded Audio Meter

FFS-IPS LCD panel, LED backlight
S-1223F adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178degree / Vertical: 178degree.

• 21.5-inch LCD Panel, 1920x1080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• V-mount battery plate
• USB firmware upgrade

Multi-format Input/Output
S-1223F supports:
• 2K/3G/HD/SD-SDI inputx2
• 2K/3G/HD/SD-SDI loop x2
• HDMI input x1
• HDMI loopx1
• YUV input x1
• VGA input x1
• CVBS input x1
• CVBS loop x1
• RS485 UMD input x1
• RS485 UMD output x1
• RS232C UMD input x1
• RS485 GPI input x1
• L/R analog audio input x1

Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1223F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc.) to patterns and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color and translucence.

Embedded audio monitoring
Up to 16-ch meters with alert and select output
S-1223F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right and you can select to display only 2 channels, 8 channels and full 16 channels. Also scale markers, alert info and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
S-1223F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

USB Firmware Upgrade
S-1223F provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into S-1223F monitor to upgrade, without PC connection.

Multiple Power Sources
AC adaptor / V-mount

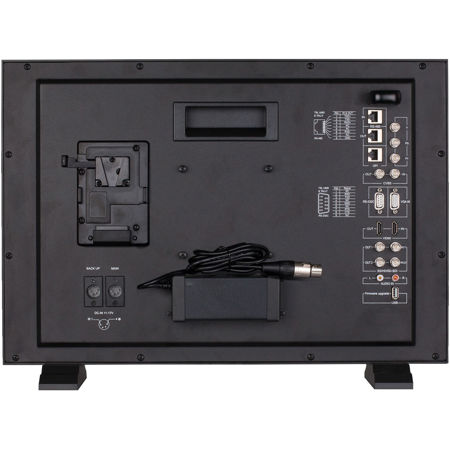

S-1223F provides a 4-pin XLR socket of DC 11-17V power input and V-mount plate for outdoor using.

3-color TALLY Light
RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
