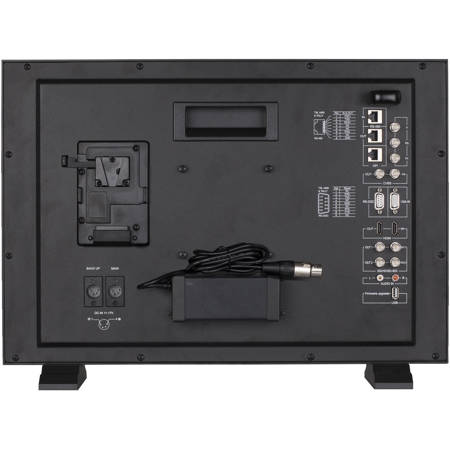

SWIT Electronics S-1223H 21.5" Full HD 3GSDI and HDMI Studio LED Monitor with S-7004S V Mount Battery Plate, 2-CH Embedded Audio Meter

SKU: SWTS1223HS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
SWIT Electronics S-1173F 17.3" FHD LED Monitor without Battery Plate
$2,300.00
$2,200.00
undefined undefined: Picture 1 regular
SWIT Electronics S-1243F 23.8" FHD LED Monitor without Battery Plate
$2,750.00
$2,650.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SWIT Electronics S-1223H Specifications

  • Screen Size

    21.5"

  • Display area

    477x268mm

  • Resolution

    1920x1080

  • Aspect ratio

    16:9 (4:3 adjustable)

  • Brightness

    300cd/m2

  • Contrast ratio

    1000:1

  • Color

    16.77 million colors

  • Viewing Angle

    Horizontal: 178 deg.
    Vertical: 178 deg.

  • Input

    2x BNC: 2x 2K/3G/HD/SD-SDI input
    1x BNC : CVBS input
    3x BNC : Y/Pb/Pr input
    1x HDMI : HDMI input
    2x RS485 : 1x GPI, 1x UMD
    1x RS232C : UMD
    1x VGA : VGA input
    2x 3.5mm RCA : L/R audio input
    1x USB : USB input (firmware upgrade)

  • Output

    2x BNC: 2K/3G/HD/SD-SDI loop output
    1x BNC: CVBS Loop output
    1x HDMI: HDMI loop output
    1x RS485: 1x UMD
    1x 3.5mm: SDI/HDMI embedded audio output, analog audio output

  • Video Format: CVBS

    NTSC/PAL

  • Video Format: SDI

    SMPTE ST 2048-1: 2011: 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
    SMPTE-425M: 1080p (60/59.94/50)
    SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
    SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
    SMPTE-296M: 720p (60/59.94/50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Video Format: HDMI

    480i/ 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

  • Video Format: Y/Pb/Pr

    480i/576i/480p/576p,720p(50/60),1080i(50/60),1080p(50/60)

  • Video Format: VGA

    640x480/800x600/1024x768/1152x864/1280x768
    1280x960/1280x1024/1600x1200

  • Working voltage

    AC: 100V-240V DC: 11V-17V

  • Power consumption

    <=32W

  • Working temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Working humidity

    10-90%

  • Storage temperature

    -15 to 60 deg. C (5 to 140 deg. F)

  • Storage humidity

    10-90%

  • Dimensions

    525 x 358 x 87mm (20.67 x 14.09 x 3.43")

  • Weight

    With-out Stand: 6.2kg (13.67lbs)

About SWIT Electronics S-1223H

S-1223H adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178degree / Vertical: 178degree.

• 21.5-inch LCD Panel, 1920x1080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 2-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• V-mount battery plate
• USB firmware upgrade

Multi-format Input/Output
S-1223H supports:
• 2K/3G/HD/SD-SDI input x2
• 2K/3G/HD/SD-SDI loop x2
• HDMI input x1
• HDMI loop x1
• YUV input x1
• VGA input x1
• CVBS input x1
• CVBS loop x1
• RS485 UMD input x1
• RS485 UMD output x1
• RS232C UMD input x1
• RS485 GPI input x1
• L/R analog audio inputx1

Digital Audio De-embed
 2-ch Audio meters display+ Audio Alarm under SDI/HDMI
S-1223H supports 2-ch audio meters under SDI and HDMI input. The audio meter is green and will turn yellow when exceeds -20dBand turn red when exceeds -9dB. The ch-1 and ch-2 de-embedded audio can be output via 3.5mm headphone socket and speaker. If the audio value is too low or no embedded audio, it will display "MUTE" or "UNLOCKED" in the audio bar.

UMD and Text-Tally Display

TSL 3.1/4.0 Protocol
S-1223H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

USB Firmware Upgrade
S-1223H provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick and directly insert into S-1223H monitor to upgrade, without PC connection.

Multiple Power Sources
 AC adaptor / V-mount
S-1223H provides a 4-pin XLR socket of DC 11-17V power input and V-mount plate for outdoor using.

3-color TALLY Light
 RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Swit Electronics S-1223H 21.5 " Monitor
  • S-7004S V Mount Battery Plate
  • 2x Desktop Stand Feet
  • AC-DC Power Adaptor
  • Swit Electronics 2 Year Warranty
