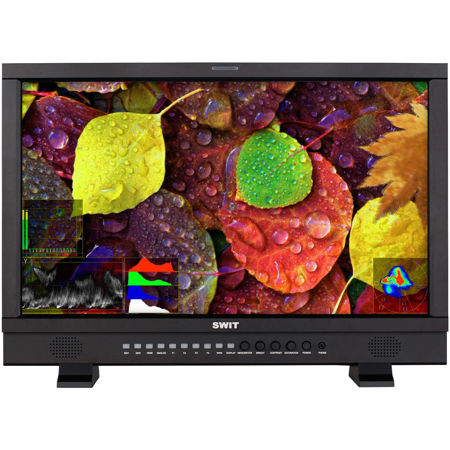

SWIT Electronics S-1243F 23.8" Full HD Waveform Studio IPS LED Monitor without Battery Plate

For professionals in video production and post-production, the S-1243F 23.8" Full HD Waveform Studio IPS LED Monitor is an innovative, high-quality, and reliable choice. This stylish and durable monitor features a 23.8-inch IPS (In-Plane Switching) LCD panel with Full HD 1920x1080 resolution and LED backlight, offering a 1000:1 contrast for precise color reproduction.

The monitor's wide viewing angle of 178 degrees both horizontally and vertically ensures clear and detailed images from all perspectives. It is equipped with a comprehensive video analysis assistant pattern, including Waveform (Y/Pb/Pr/R/G/B), Vector scope, and Histogram (R/G/B/Y), providing a visual representation of digital video quality information such as Luma, Color, and Saturation.

The S-1243F monitor also supports SDI-16ch and HDMI-8ch embedded audio meters display, complete with marks and audio abnormal alert information. It allows users to select any 2 channels audio to output via a 3.5mm socket or speakers.

The monitor's UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection and Max 8 letters displayed, adds to its versatility. It also supports 17x17x17 3DLUT accurate color calibration, allowing users to measure and generate 3DLUT cube files for upload to the monitor via a USB stick.

The S-1243F monitor is designed with a standard USB port for firmware upgrades, eliminating the need for a PC connection. It also features a three-color TALLY light with RS485 input signal and a GPI interface and control via the RJ45 (RS485) port on the rear panel.

Whether you're editing videos, designing graphics, or monitoring audio levels, the S-1243F 23.8" Full HD Waveform Studio IPS LED Monitor without Battery Plate is a reliable tool for all your studio needs.
