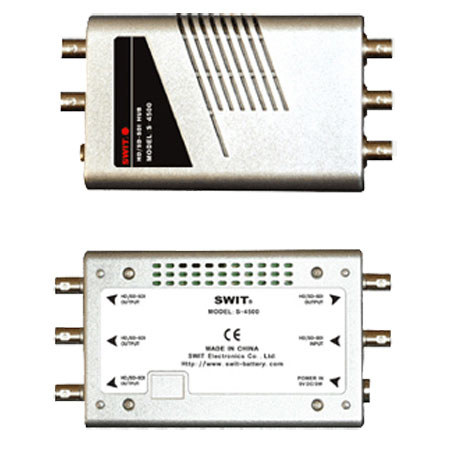

SWIT Electronics SWIT S-4500 4-Port HD-SDI Hub

The SWIT S-4500 is a high performance and high stability 4-port HD/SD-SDI HUB, with the auto-balance function to reduce the input signal waste in long cable transmission. The effective length of auto-balance function is as long as 350m (Belden 1694A) in SDI signal transmission and 140m (Belden 1694A) in HD-SDI signal transmission. It also has powerful function of signal trembling elimination, clock resumption and cable drive. The SMPTE 259M, SMPTE 292M, SMPTE 344M signal formats and DVB-ASI (270Mb/s) are supported.
