SWIT S-4605 SDI to Optical Converter
See all Swit Electronics items

SWIT Electronics S-4605 SDI to Optical Converter

SKU: SWTS4605
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SWIT Electronics S-4605 Specifications

  • Input

    3G/HD/SD-SDIx1

  • Output

    OPTICALx1, 3G/HD/SD-SDI loopx1

  • SDI Format

    SMPTE-425M: 1080p (60 / 59.94 / 50)
    SMPTE-274M:
    1080i (60 / 59.94 / 50)
    1080i (60 / 59.94 / 50)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Optical Format

    SMPTE 297-2006: Output wavelength: 1310nm

  • Max SDI cable length

    100 meters

  • Max SM fiber length

    20 kilometers

  • Power

    = 3W

  • Working Voltage

    DC 6-18V

  • Working Environment

    Temperature: 0 deg.C -+70 deg.C, Humidity:10%-90%

  • Dimensions

    98x84x29mm / 3.86x3.31x1.14"

  • Net weight

    220g / 7.76oz

  • UPC Code

    6948193501123

About SWIT Electronics S-4605

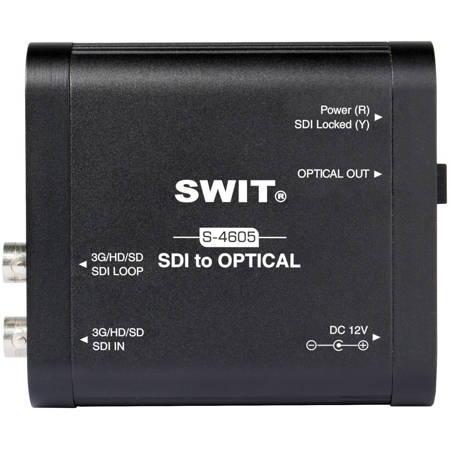

The Swit S-4605 is a portable 3G/HD/SD-SDI to optical fiber converter. The single-mode fiber ensures max 20km reliable transmission and support hot swap of optical module. The S-4605 is heavy duty housing design, protecting the BNC connectors well and supplied various screw threads in the bottom, for convenient installing.

SWIT Electronics S-4605 Features

  • Portable 3G/HD/SD-SDI to Optical Fiber Converter
  • 1 SDI input, 1 Optical output and 1 SDI loop through output
  • Single-mode fiber, max 20km reliable transmission
  • Support hot swap of optical module
  • Power/SDI status indicator
  • Heavy duty housing
  • Bottom screw threads for installing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Portable 3G/HD/SD-SDI to Optical Fiber Converter
  • Single-mode fiber, max 20km reliable transmission
  • Support hot swap of optical module
  • Power/SDI status indicator
  • Heavy duty housing
  • Bottom screw threads for installing

What's in the box:

  • Swit S-4605 SDI to Optical Converter
  • Power Adaptor
  • Swit 2 Years Warranty
