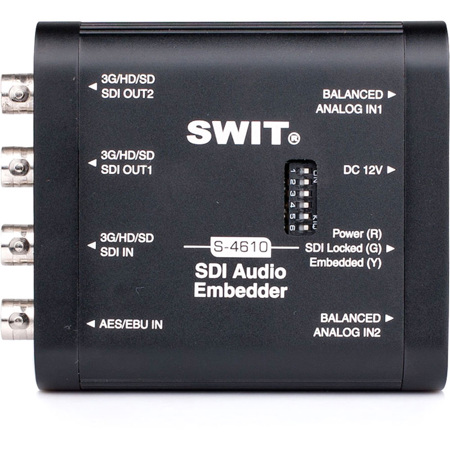

SWIT Electronics S-4610 3G-SDI Audio Embedder

SDI audio embedder
S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed and SDI up to 3Gb/s. It's widely used in broadcast field production and professional audio/video conversion and transmission.

• Portable Audio to SDI Embedder
• 3G/HD/SD-SDI supported
• Embed audio to any 2 channels of SDI first 8-ch positions
• AES/EBU audio input and embed
• 6.35mm balanced audio input and embed
• 2x SDI output with new embedded audio
• Power/input/output status indicator
• Pole-tap 6-18V DC power input
• Heavy duty aluminum housing
• Bottom screw threads for installing

Input and Output
S-4610 provides: 1x 3G/HD/SD-SDI input, 1x AES/EBU digital audio input (2-ch), 2x 6.35mm analog audio input (balanced), 2x New embedded 3G/HD/SD-SDI output (If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embedded)

Embed Channel Selection - By 6 switchers
S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6 switchers for reference.

Status Indicators - Power / Input / Output
S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized and if new embedded SDI outputs.

Power Supply - Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing
The S-4610 mini converter adopts unibody aluminum alloy housing, strong for field using and protects the audio/video connectors effectively.

Installation
S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.
