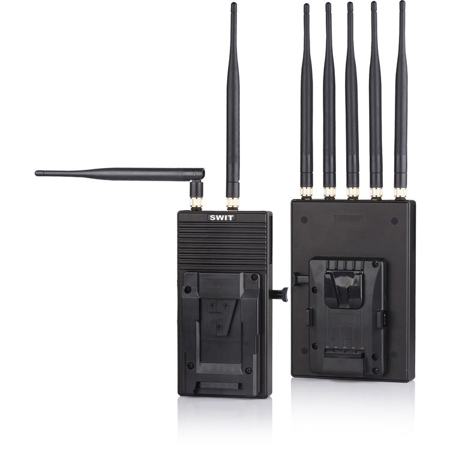

SWIT Electronics 700m (2300') LOS Uncompressed 3GSDI/HDMI Wireless System with V-Mount on Transmitter & Receiver

S-4904 is the broadcast industry wireless system, includes an S-4904T transmitter and an S-4904R receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 700 meters scale and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.

• Professional WHDI (MIMO/OFDM) technology
• Uncompressed 3G/HD/SD-SDI and HDMI
• 2-ch SDI/HDMI embedded audio transmission
• 2000ft (LOS) transmission distance
• Less than 1ms latency
• 5.1-5.9GHz license-free operation frequency
• User configurable frequency bands
• Multicast - 1 transmitter to multi receivers
• Less than 63mW radio power
• AES 256bit encryption
• V-Mount connection
• All-metal housing, durable
• Pure hardware connection; Plug and Play

The transmitter S-4904T supports:
• 3G/HD/SD-SDI input x1
• HDMI x1

The receiver S-4904R supports:
• 3G/HD/SD-SDI output x1
• HDMI x1

The receiver SDI and HDMI are output simultaneously. If both SDI and HDMI is input to transmitter, the receiver will give priority to output SDI signal.

Approx. 2000ft Effective Distance
In Line of Sight, the S-4904 wireless transmission system support approx. 2000ft effective transmission distance of uncompressed 3G/HD/SD-SDI and HDMI signal and the latency is less than 1 millisecond.

Embedded Audio Transmission
The S-4904 supports SDI and HDMI embedded audio (ch-1 & ch-2) transmission.

5.1-5.9GHz Operation Frequency
The S-4904 wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable and support at most 4 wireless channels in one location. The radio power is less than 63mW and will not do harm to human bodies.

Multicast Support
You can set several S-4904R receivers at the same frequency bands as the 1 S-4904T transmitter to enable the multicast mode.

Power Supply and Installation
The transmitter S-4904T is equipped with V-mount plate, to be easily fixed on cameras and attached with batteries. The receiver S-4904R is equipped with V-mount plate to be powered by batteries. Both the transmitter and receiver can also be powered via the 5.5/2.1mm pole DC in socket of 6.5-17V input.
